Think of a hydraulic circuit as the muscular system of heavy machinery. At the heart of this raw power lies a critical logic center. This component takes responsibility for routing fluid, protecting components, and dictating actuator behavior. A fundamental engineering baseline dictates all fluid power mechanics: pressure determines force, while flow determines speed.
Specifying the wrong valve disrupts this delicate balance entirely. Misdiagnosing a failing unit creates equally disastrous results. You risk causing excessive pressure drops, system overheating, uncontrolled load descents, and premature pump failure. You need absolute precision to keep fluid power systems safe and efficient. We will explore the internal mechanics of these vital directional hubs and break down practical selection frameworks. You will also learn advanced field troubleshooting techniques to spot the real cause behind bouncing cylinders and heat generation when dealing with any Hydraulic Control Valve.
Core Function: Hydraulic control valves execute discrete or proportional fluid routing to start, stop, or change the direction and speed of actuators.
Selection Framework: Accurate specification relies on a four-dimensional matrix: construction type, port count, position count, and actuation mechanism.
Primary Failure Mode: System contamination accounts for the vast majority of valve seizures and seal failures.
Diagnostic Reality: Symptoms like "bouncing" or "jumpy" cylinders during load descent often indicate mismatched pilot ratios in counterbalance valves, not necessarily a failed directional valve.
Every hydraulic system relies on precise fluid manipulation to execute physical work. The activation cycle begins when an operator or a control system sends an input signal. This input can take many forms. We use manual levers, electrical solenoids, mechanical linkages, or hydraulic pilot pressure. This input forces internal components to shift.
Most designs utilize precision-machined spools or poppets. As the spool slides inside the valve body, it aligns specific internal grooves with drilled fluid galleries. We call these galleries "ways." Opening specific ways directs highly pressurized fluid exactly where it needs to go. Once the input signal stops, return springs immediately force the spool back to a neutral, fail-safe center position.
You must understand the difference between discrete and proportional operation. Each style serves a vastly different application.
Discrete (Bang-Bang): These valves shift instantaneously between finite positions. They act as simple on-or-off switches. This rapid shifting causes rapid fluid acceleration or deceleration. The industry commonly refers to them as "bang-bang" valves due to the sudden, audible impact they create when actuating heavy loads.
Proportional/Servo: These advanced models allow variable spool positioning. They rely on fluctuating electrical signals to slightly open or close fluid pathways. This variable positioning offers precise flow metering. You will find proportional valves heavily utilized in robotics, aerospace, and delicate CNC machinery where smooth transitions are mandatory.
No valve operates in isolation. It relies entirely on a balanced component ecosystem. The pump supplies the continuous flow of fluid. The actuator translates this directed fluid into physical mechanical work. The reservoir safely stores and cools the returning oil. Internal springs provide critical fail-safe centering to stop machinery motion if the power fails. A disruption in any single ecosystem component will cause the entire circuit to fail.
Engineers use a strict taxonomy model to classify every Hydraulic Directional Control Valve. You cannot specify replacement parts without understanding this foundational framework.
Accurate specification relies on evaluating four distinct mechanical dimensions. Each dimension dictates how the component interacts with the broader machine.
Internal Construction: The physical blocking mechanism matters. Spool designs slide linearly to open ports. Ball and poppet designs lift off a seat to allow flow, offering superior zero-leakage sealing.
Port/Position Configurations: We identify configurations using standard numerical layouts. A 3/2-way configuration features three ports and two spool positions. We typically use 3/2-way models for single-acting cylinders. A 4/2 or 4/3-way configuration controls double-acting cylinders.

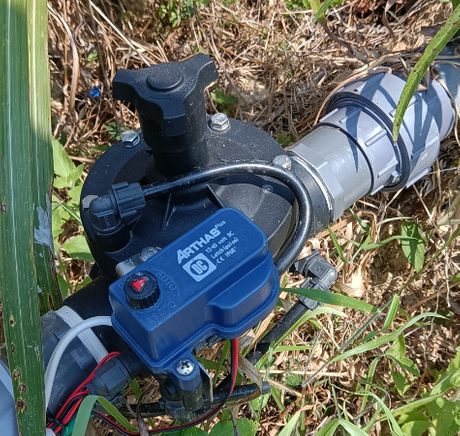

Actuation Methods: How do we physically move the internal mechanisms? Manual levers offer direct feedback for tractor operators. Solenoid-operated electric coils allow remote automated control. Pilot-operated hydraulic systems use small fluid pressures to shift massive spools in heavy earthmoving equipment.
Flow Capacity: The internal gallery size must match the pump output. Undersized galleries restrict flow and damage the circuit.
Reading fluid power schematics requires basic port literacy. Manufacturers stamp standard letters directly onto valve bodies. You must memorize these standard identifiers.
Port Code | Functional Meaning | System Connection |
|---|---|---|
P | Pump Inlet | Receives high-pressure fluid directly from the supply pump. |
T | Tank Return | Routes low-pressure exhaust fluid back to the main reservoir. |
A / B | Work Ports | Connects out to the specific hydraulic cylinder or motor. |
N / PB | Power Beyond | Allows series linking of multiple units or closed-center conversions. |
Specifying a reliable control valve involves more than matching thread sizes. You must conduct a thorough engineering review. Proper sizing directly dictates the speed, safety, and lifespan of your machinery.
You must rigorously evaluate both maximum and minimum system flow rates. The fluid velocity through internal passages determines energy efficiency. Undersized components create severe internal restrictions. These restrictions cause unacceptable pressure drops across the circuit. The pump must work harder to push fluid through a tight bottleneck. This wasted energy converts directly into parasitic heat generation. High heat breaks down oil viscosity, destroys rubber seals, and leads to catastrophic pump failures.
Spools are not universal. Manufacturers machine different geometries into the metal to achieve specific neutral-state behaviors. You must choose the right geometry for your actuator.
A-Spool (Cylinder Spool): This design completely blocks the A and B work ports in the neutral position. It traps fluid inside the cylinder. We use A-spools to hold suspended loads firmly in place.
D-Spool (Motor Spool): This design connects the A and B ports directly to the Tank (T) port in neutral. It relieves internal pressure instantly. We use D-spools to allow spinning hydraulic motors to coast to a smooth stop safely.
K-Spool (Float Spool): This specialized geometry allows fluid to bypass freely between all working ports. It allows external forces to push the cylinder without pump intervention. Farmers consider float spools essential for terrain-following equipment like snowplows or agricultural implements.
Environmental conditions drastically alter fluid dynamics. You must account for temperature-induced viscosity shifts. Cold morning temperatures make oil thick and sluggish. This high viscosity alters predetermined flow rates and slows actuator response times. Extreme heat thins the oil, increasing internal leakage rates across spool clearances. Always verify environmental tolerances before finalizing your design.
Actuation requires physical effort. You must evaluate operator ergonomics. A spring-return mechanism requires continuous operator engagement. The moment you let go of the lever, it snaps back to neutral. A detent mechanism uses a mechanical catch to lock the lever in the "work" position. Detents offer hands-free operation for continuous tasks like running a hydraulic wood splitter or a rotary brush.
Hydraulic circuits operate in brutal environments. Dust, dirt, and moisture constantly threaten to breach the system. A strong preventative baseline is your first line of defense. You must establish the "Clean, Cool, Dry" mandate across your maintenance routines. Particulate and moisture contamination remain the absolute root causes of spool scoring and O-ring degradation.
When failures do occur, rely on diagnostic logic. Avoid replacing expensive parts blindly. Use the troubleshooting matrix below to identify common faults.
Observed Symptom | Probable Cause | Recommended Fix |
|---|---|---|
Uneven actuator speed / chattering operation. | System aeration, clogged metering orifices, or incorrect counterbalance pilot ratio. | Bleed air from the system. Inspect and clean pilot lines. Recalibrate pilot ratios. |
Excessive heat generation at the valve block. | Component undersized for actual pump flow. Severe internal spool leakage. | Verify flow ratings against pump output. Inspect internal spool clearances. |
Unresponsive electrical actuation (solenoid dead). | Solenoid coil burnout. Physical spool jammed by metal debris. | Test coil resistance with a multimeter. Verify fluid cleanliness. Clear debris. |
Field technicians frequently misdiagnose load-handling failures. They blur the lines between directing flow and holding weight. This misunderstanding creates immense safety hazards on job sites.
Standard flow control components solely regulate actuator speed. They meter the volume of oil entering a cylinder. However, they do not safely hold suspended loads. Standard spools leak slightly by design. If you rely on a standard directional spool to suspend a boom arm, the load will eventually drift downward. You must use load-holding valves for suspension.
Operators frequently encounter actuators shaking violently during descent. We call this the "bouncing cylinder" phenomenon. Mechanics usually assume a directional valve has failed. They replace the main valve body only to find the problem persists.
This shaking is rarely a primary circuit failure. It typically points to a mismatched pilot ratio on a counterbalance valve. Counterbalance valves act as fail-safe brakes. They require external pilot pressure to open the fluid path and allow a load to lower.
Engineering reality dictates strict rules for pilot ratios. High-inertia or long-boom loads require much lower pilot ratios for stability. A high pilot ratio opens the valve too quickly. The load drops, pilot pressure vanishes, and the valve slams shut. This cycle repeats rapidly, causing the violent shaking. Lowering the pilot ratio demands more steady pilot pressure to open the fail-safe path, guaranteeing a smooth and controlled descent.
Selecting the correct fluid routing component requires methodical engineering. You must transition carefully from analyzing raw system requirements to shortlisting specific configurations. Keep the fundamental rule in mind: flow capacity must match pump output perfectly to avoid severe parasitic heat generation.
Proper procurement involves strict alignment. You must match schematic identifiers like P, T, A, and B ports precisely. You must evaluate application-specific spool geometries. Your flow capacities must align with the exact operational environment to guarantee safety and efficiency.
Your next step is clear. Consult your machine's master hydraulic schematic before making any upgrades. Verify your operating pressures carefully. Always cross-reference port threads and sizes before purchasing replacement parts or conversion kits for your circuit.
A: Look for a seventh hydraulic line exiting the main block. Manufacturers often stamp "PB" or "N" directly into the metal near this port. In many aftermarket configurations, you will see a specialized steel sleeve extension protruding from the housing. This sleeve is noticeably longer than standard fittings and redirects high-pressure fluid downstream to another circuit.
A: An open-center plug allows pump fluid to flow straight through the valve and back to the tank when spools sit in neutral. A closed-center conversion plug physically blocks this neutral path. You install a closed-center plug when connecting the unit to a variable displacement pump that builds pressure and destrikes itself when flow is blocked.
A: Standard directional spools come with factory presets and rarely require mechanical adjustment. However, auxiliary components like integrated relief valves or counterbalance modules absolutely require load tuning. You must manually adjust these screws to compensate for internal spring wear, changing load dynamics, and shifting fluid viscosities over the machine's lifespan.
