In fluid power systems, generating pressure is only half the equation. Directing and regulating this energy safely is the primary role of a Hydraulic Control Valve. You need precision to turn raw fluid power into useful mechanical work. These components act as the final control element for your machinery. They determine exactly when, where, and how fast an actuator moves.
Incorrect valve selection often leads to severe system inefficiency. Undetected wear can cause catastrophic pump failure and massive operational downtime. In high-pressure environments exceeding 3,000 PSI (20 MPa), these failures create critical safety hazards for operators.
This guide explores application-based categorization and essential selection criteria. We cover different actuation methods and provide actionable troubleshooting frameworks. You will learn how to make informed specification and replacement decisions to keep systems running safely and smoothly.
Hydraulic control valves dictate actuator outcomes by managing flow path, pressure limits, and fluid volume.
Component selection relies heavily on matching "center configurations" (e.g., open vs. closed) to pump types to prevent premature wear and energy waste.
Advanced applications require proportional control using PWM and dither signals to maintain actuator precision and prevent spool stiction.
Fluid contamination and thermal stress are the primary drivers of valve failure, necessitating strict filtration and routine diagnostic checks.
A hydraulic circuit relies on three distinct types of control. You must manage where the fluid goes, how hard it pushes, and how fast it travels. We break these functions down into directional, pressure, and volume regulation categories.
Directional control components route fluid to specific cylinders or motors. They determine the actual movement path of your machinery. Engineers evaluate them based on "ways" and "positions." Ways refer to the number of fluid ports on the component. Positions refer to the distinct operational states the spool can achieve. For example, a 4/3 valve provides a neutral position, an extend position, and a retract position.
You have several implementation choices for directional control:
Monoblock designs: These feature a single solid housing. They are highly compact and incredibly durable. They resist leaks well.
Sectional designs: These allow you to bolt multiple valve sections together. You get excellent customizability for complex equipment.
Cartridge designs: These thread directly into a machined manifold. They save space and simplify maintenance drastically.
Pressure management components protect your hardware and sequence mechanical actions. They operate by sensing system pressure and adjusting fluid paths accordingly. We divide them into three operational areas.
Upstream protection: Relief valves open at a specific set point called the cracking pressure. They bypass excess fluid back to the reservoir. This prevents dangerous system over-pressurization.
Downstream regulation: Pressure-reducing valves maintain safe operating limits for secondary circuits. They ensure delicate sub-systems do not receive the full force of the main pump.
Load management: Counterbalance valves hold heavy loads in place. They prevent runaway loads in systems storing high potential energy. Think of a crane arm safely holding a heavy weight.
Actuator speed depends entirely on the volume of fluid entering the cylinder. A Hydraulic Flow Control Valve regulates this speed by restricting fluid volume through a variable orifice. As you shrink the orifice, flow decreases, and the actuator slows down.
You must evaluate these components based on load stability. Non-pressure-compensated designs work perfectly for stable loads. However, fluctuating loads require different hardware. Pressure-compensated flow valves are mandatory for maintaining consistent actuator speed under changing load demands. They adjust internal passageways automatically to keep flow rates steady.
Core Function | Primary Component | Main Application Goal |
|---|---|---|
Directional Control | Monoblock, Sectional, Cartridge | Manage actuator path (Extend/Retract) |
Pressure Control | Relief, Reducing, Counterbalance | Ensure safety, sequence actions, hold loads |
Volume Regulation | Flow Restrictors, Compensators | Manage actuator speed under variable loads |
Selecting the right actuation method determines how operators interact with the machine. Methods range from simple physical levers to highly advanced digital signals. You must match the actuation style to your required precision level.
Manual actuation uses levers, push-buttons, or pedals. This method remains the best choice for mobile equipment and agricultural machinery. Operators need direct physical feedback when moving heavy loads. They can feel the resistance through the lever.
These setups are highly cost-effective and robust. However, they face significant limitations. Human reaction time caps their operational speed. You also face strict physical mounting constraints. The operator must be physically near the valve bank to pull the levers.

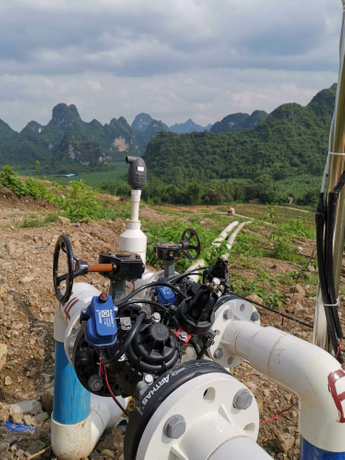

Solenoid actuation relies on electrical currents moving an electromagnetic coil. This creates a magnetic field pushing the spool. It is the standard approach for modern industrial automation. A programmable logic controller sends simple on/off electrical commands to shift positions.
Implementation Best Practice: Pay attention to coil design. "Wet pin" designs utilize system fluid directly inside the solenoid tube. The oil provides excellent heat dissipation and mechanical cushioning. This offers superior longevity compared to standard "air gap" solenoids. Air gap designs overheat much faster under heavy use.
Proportional control allows for infinite speed and force adjustments. Instead of simple on/off states, it varies the spool position continuously. It utilizes Pulse Width Modulation (PWM) signals to achieve this. The controller rapidly pulses electrical current to hold the spool in partial positions.
Design Consideration: Static friction is the enemy of proportional control. Spools tend to stick inside their bores. Your electronic controller must generate a "dither signal." This signal creates continuous micro-vibrations inside the coil. It overcomes static friction and prevents spool binding. It ensures the actuator responds instantly to new commands.
Choosing the correct hardware requires more than knowing flow rates. You must evaluate internal geometries and port configurations. Failing to align these factors causes premature wear and poor performance.
The "center configuration" dictates fluid behavior when the machine sits in neutral. Matching this to your hydraulic pump type is critical.
Open-Center: Fluid travels from the pump, through the valve, and returns directly to the tank in neutral. This design is ideal for constant-flow gear pumps. The pump never dead-heads against a blocked port.
Closed-Center: This configuration blocks all ports in neutral. It requires a variable displacement pump capable of de-stroking itself when flow demand drops.
Common Mistake: Using a closed-center design with a fixed displacement pump is dangerous. The pump forces continuous flow against blocked ports. The system must continuously push fluid over the main relief valve. This rapidly degrades fluid quality and destroys the pump.
Tandem-Center: This hybrid approach unloads the pump fluid back to the tank while simultaneously locking the actuator work ports in place. It offers great efficiency and load holding.
You must select a spool type matching your mechanical attachment. Spools determine the exact cross-port fluid connections.
A-Spool / D-Spool: These are standard configurations. You use them for simple double-acting cylinders and continuous hydraulic motors.
K-Spool (Float): This spool connects the work ports to the tank in a specific position. It allows fluid to move freely across the cylinder. This is essential for mobile attachments. Snow plows and agricultural mowers need to track uneven ground contours freely.
Proper plumbing requires strict adherence to port identification standards. You must verify compatibility using standard nomenclature before installation.
P (Pressure/Inlet): Receives high-pressure fluid from the pump.
T (Tank/Return): Sends low-pressure fluid back to the reservoir.
A & B (Work Ports): Connect directly to the cylinder or motor.
N (Power Beyond): Routes high-pressure fluid downstream in a series connection.
Always ensure compliance with ANSI/ISO symbols. These schematics guarantee safe integration across different manufacturer components.
Even the best components wear down over time. Identifying failure signs early prevents catastrophic machine damage. You need a structured approach to troubleshoot effectively.
Operators usually notice problems through physical machine changes. Look out for sluggish actuator response. The cylinder might hesitate before moving. Failure to shift positions completely indicates serious internal binding. External leaks around the spool seals are obvious visual cues. Abnormal system noises require immediate attention. Hissing sounds often indicate high-pressure fluid bypassing a damaged seal. Knocking sounds strongly indicate pump cavitation or violent pressure spikes.
Understanding why components fail helps you improve preventive maintenance schedules.
Fluid Contamination: Microscopic particulates act like sandpaper. They score the polished spool surfaces and degrade rubber seals. Contamination accounts for the vast majority of failures.
Improper Installation: Mechanics often overtighten mounting bolts. Torque misalignment causes the cast iron valve body to distort slightly. This binds the internal spool permanently.
Pressure Override: Operating consistently between the cracking pressure and full-flow pressure generates immense excess heat. It wastes energy and hardens O-rings rapidly.
Follow these logical steps when addressing a malfunctioning unit. Avoid replacing parts blindly.
Measure actual system pressure using an inline gauge. Compare this against the specified cracking pressure to ensure the relief mechanism operates correctly.
Inspect the reservoir fluid. Look for metallic flakes or milky moisture ingress. Drain and filter if necessary.
Measure the electrical amp draw for solenoid setups. Compare your readings against manufacturer baseline specifications to rule out a burnt-out coil.
Manually override the spool using the physical push-pin. If it shifts smoothly by hand but not electrically, you have isolated an electrical fault rather than a mechanical bind.
Specifying the right hydraulic control component is a critical engineering task. You must balance required precision levels against physical mounting realities. Ensure you factor in strict safety limits regarding relief pressures and fail-safe modes. Most importantly, verify complete compatibility between your center configurations and your primary pump mechanism.
Take these actionable next steps before purchasing replacement hardware. First, audit your current pump displacement type to confirm open or closed center requirements. Second, calculate your maximum actuator speed requirements to size your ports accurately. Finally, document your exact spool configurations to ensure attachments behave correctly in the field.
A: A Power Beyond port is a specialized outlet. It allows high-pressure fluid to route downstream to a secondary valve bank. This prevents dumping usable hydraulic energy directly back to the tank. It makes running multiple implements in series possible.
A: Cracking pressure is the exact point the relief mechanism begins to open. Full-flow is the higher pressure required to push the maximum rated fluid volume through the unit. The difference between these two points is known as "pressure override."
A: Overheating is usually caused by internal spool binding. Contamination or mounting distortion traps the spool. The electrical coil draws continuous high amperage trying to push a stuck object. Operating an air-gap solenoid at excessive duty cycles also causes severe overheating.
A: Standard flow control components restrict fluid equally in both directions. However, many units come equipped with an internal pilot-to-close check valve. This bypass feature allows completely free reverse flow while maintaining strict restriction in the primary direction.
