Imagine a heavy-duty hydraulic cylinder unexpectedly locking up mid-cycle. Production halts immediately on the factory floor. System downtime rapidly drains company profits. Maintenance crews scramble to find the root cause of the sudden failure.
At the heart of these sudden malfunctions often lies a misunderstood component. Think of the directional control valve (DCV) as the steering wheel of your fluid power system. It seamlessly routes, halts, or alters the path of high-pressure fluid. Without it, the entire machine loses its operational logic and movement capabilities.

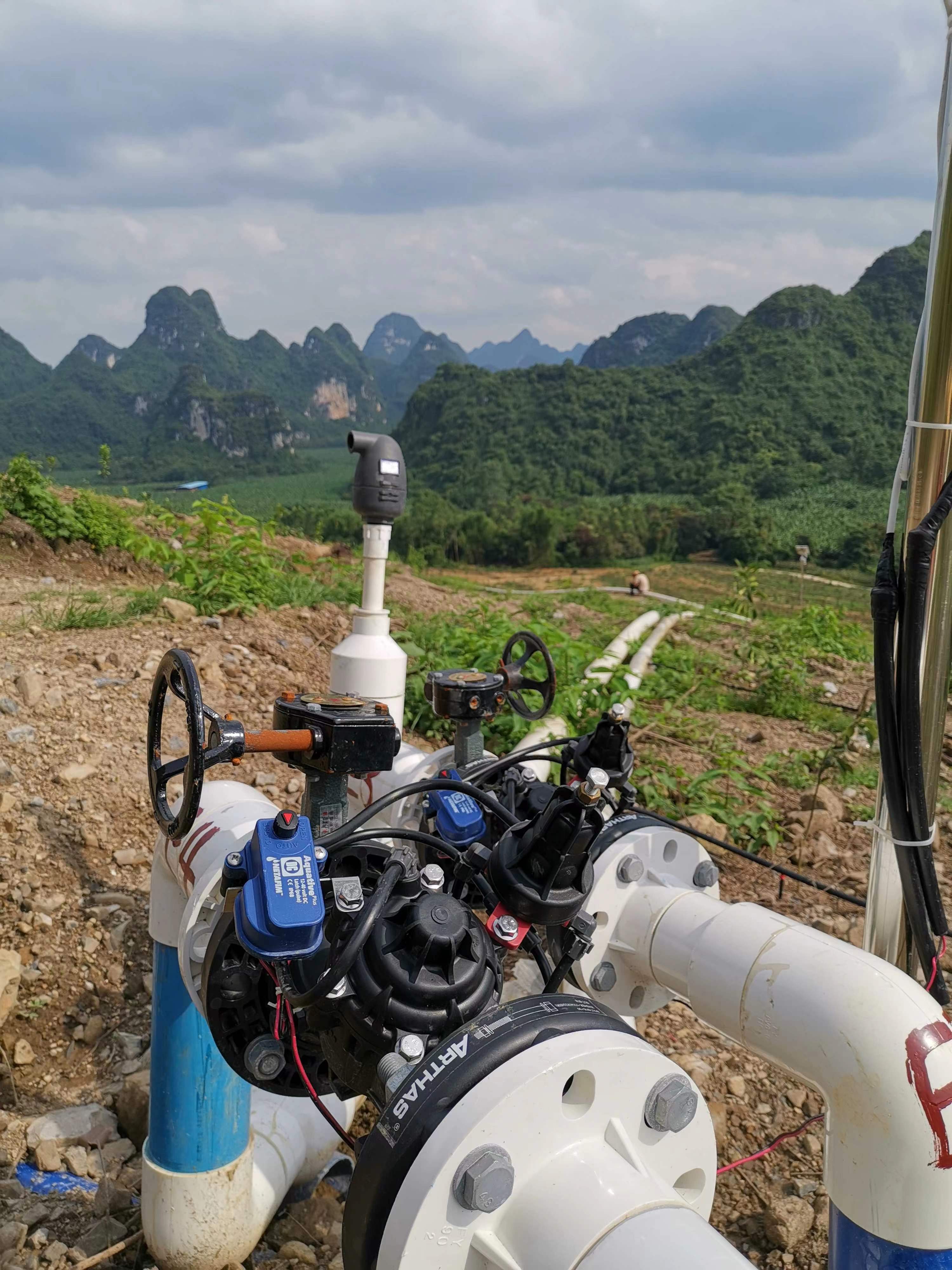

This article goes far beyond basic mechanical definitions. We designed this technical guide specifically for engineers and procurement teams. You will learn to accurately specify components and read complex P&ID schematics. You will also discover how to troubleshoot a Hydraulic Control Valve efficiently. Mastering these exact skills prevents costly mismatching. It eliminates premature equipment failure. It keeps your critical industrial processes running smoothly.
Standardized Terminology: DCVs are classified by four rigid dimensions: Ports (Ways), Positions, Center Conditions, and Operators.
Specification Accuracy: Selecting the right hydraulic valve requires matching flow requirements (GPM) and pressure thresholds (PSI) with the correct actuation type (Direct vs. Pilot-operated).
System Harmony: A DCV dictates direction, but must work seamlessly with pressure control valves (relief, sequence) to maintain safe operation.
Methodical Troubleshooting: 90% of valve diagnostics should happen before physically unbolting the component, starting heavily with P&ID schematics.
Procurement and engineering miscommunications happen frequently in industrial environments. Loose terminology often causes these costly errors. A buyer might order a simple three-way module when the circuit actually requires a specific tandem center configuration. We must standardize our technical language. This ensures accurate vendor requests and reduces component return rates.
Every Hydraulic Valve relies on four rigid evaluation dimensions. Understanding these dimensions forms the absolute bedrock of fluid power engineering.
Ports represent the physical threaded connections on the valve body. Fluid enters and exits here. The term "Ways" defines the active internal flow paths. You must distinguish "Ways" from simple physical ports. Sometimes a module features extra auxiliary ports. These do not count as active fluid ways.
Positions indicate the functional states available to the system. The internal spool shifts mechanically into these states. Most industrial systems utilize two or three positions. Two-position designs simply turn actuators on or off. Three-position designs add a crucial neutral state for holding loads.
Neutral positions dictate system behavior when idle. Selecting the wrong center condition causes severe fluid overheating.
Open Center: Connects all active ports back to the tank. It unloads the pump pressure completely.
Closed Center: Blocks all fluid ports entirely. It maintains high pressure across the entire line.
Tandem Center: Proves highly effective for continuous operation. It routes pump flow directly back to the tank. This avoids forcing continuous flow over a relief valve.
Float Center: Connects working ports directly to the tank while blocking the pump. It allows attached cylinders to move freely under external mechanical forces.
Actuation methods depend heavily on your system automation needs. Manual operators use physical hand levers. Mechanical types rely on moving cams or limit rollers. Pneumatic operators use compressed air pilot lines. Electrical actuation relies on magnetic solenoids. Solenoids provide rapid, automated shifting for modern programmable logic controllers.
Engineers usually understand basic fluid operation. However, implementation reality often proves difficult. Manufacturer variations in nameplate markings cause immense confusion on the shop floor. Deciphering standard schematic symbols remains an essential diagnostic skill for any technician.
Look at the metallic body closely. Manufacturers stamp specific letters near every port.
P: Pump or pressure supply line. High-pressure fluid enters here.
T: Tank or return line. Depressurized fluid exits here back to the reservoir.
A & B: Working or output ports. They connect directly to your mechanical actuator. This could be a linear cylinder or a rotary motor.
Hydraulic circuits strictly use 'P' and 'T'. Pneumatic systems look quite different. They might use 'IN' for supply air. They often use 'EX' for exhaust. Sometimes they use numbers like 3 and 5. Mixing these naming conventions up causes severe integration issues. You might blow out low-pressure seals instantly.
You must verify the P&ID (Piping and Instrumentation Diagram) thoroughly. Make this your absolute baseline step. Never integrate a new component into an existing circuit without rigorous schematic verification. Guessing fluid paths destroys expensive machinery.
Hydraulic vs. Pneumatic Port Identification | ||
Port Function | Hydraulic Standard | Pneumatic Equivalent |
|---|---|---|
Supply / Pressure | P | IN / 1 |
Return / Exhaust | T | EX / R / S / 3 / 5 |
Working Outputs | A, B | A, B / 2, 4 |
Matching component architecture to your specific industrial application prevents catastrophic failures. Focus on evaluating scale, flow capacity, and strict compliance needs.
Direct-operated options suit lower flow circuits perfectly. The solenoid directly pushes the internal spool. They fit standard D03 or D05 footprints seamlessly. They handle roughly 20 to 38 GPM efficiently.
Pilot-operated variants manage extreme industrial conditions. They use a smaller pilot unit to shift a much larger main spool. Use them for high-flow, high-pressure environments. They scale up massively to the D10 standard. They handle up to 290 GPM at 5000 PSI safely.
Monoblock designs cast everything into one solid piece. They offer a compact footprint. They resist internal leaks effectively. They remain highly cost-effective. They suit mobile equipment featuring permanently fixed requirements.
Sectional designs provide massive engineering customization. Their modular "slice" architecture allows flexibility. You can add extra functions later easily. They fit complex machinery perfectly. You simply bolt another directional section onto the existing fluid stack.
Modern applications demand strict mechanical safety compliance.
Position Monitored Valves: You often need these to meet stringent ISO 4413 mechanical safety standards. They send continuous electrical feedback verifying the spool location.
Explosion-Proof / Hazardous Location: Specialized locations require customized construction. Specify necessary certifications like ATEX or IECEx immediately.
Surface Treatments: Consider harsh environmental factors carefully. Specify a zinc-nickel coating. This provides robust 600-hour salt-spray resistance. Certain premium designs tolerate ambient temperatures dropping to -40°C.
Understanding system-level context prevents critical specification errors. You must clarify exactly what a directional device cannot do.
Directional units handle "where" the fluid goes. They act purely as traffic cops. They do not regulate force. Pressure control units handle "how much force" the fluid exerts. They manage the physical muscle. You absolutely need both for a functional machine.
These components never operate alone. They collaborate continuously with pressure controls to maintain safe operation.
Pressure Relief Valve: This component acts as your absolute system safety net. It strictly limits maximum pressure spikes. If a cylinder jams, it dumps fluid safely to the tank.
Sequence Valve: This component controls operational timing. It ensures circuit A reaches full operating pressure first. Only then does fluid flow automatically into circuit B.
Counterbalance Valve: This device holds heavy suspended loads securely. It prevents them from free-falling dangerously in the event of a sudden hose rupture.
Ecosystem Summary Chart | ||
Component Type | Primary Function | Analogy |
|---|---|---|
Directional Control | Routes fluid paths (Start, Stop, Change) | Traffic Cop / Steering Wheel |
Pressure Relief | Caps maximum system force | Safety Net / Fuse |
Sequence Control | Dictates operational order based on force | Orchestra Conductor |
Counterbalance | Prevents load runaway | Brake Pad |
Diagnosing a failing fluid system methodically saves immense labor hours. Adopt a vendor-neutral, systematic approach. Stop guessing and start measuring objectively.
Physical teardowns consume valuable production time. They also introduce new contamination into the fluid. Try this pre-teardown sequence first.
Categorize the Symptom: Determine your exact issue immediately. Is it a flow problem? Is it a pressure loss? Is it a directional routing issue?
Consult the Schematic: Never guess fluid flow paths. Trace them physically on paper first. Identify every component inline.
Isolate the Sub-circuit: Narrow down your list of suspect components immediately. Block off parallel circuits to isolate the fault quickly.
Non-invasive Checks: Verify solenoid electrical signals using a multimeter. Measure magnetic coil temperatures. Test physical manual spool overrides before breaking any pressurized fluid lines.
Avoid simply replacing a blown component blindly. You must find the fundamental root cause. Contaminated fluid scores the internal spool. Excessive heat bakes the rubber O-rings. Voltage drops cause solenoids to flutter and burn out entirely. Replacing a damaged unit without addressing these specific root causes guarantees a rapid repeat failure.
Finalizing your Bill of Materials (BOM) requires strict attention to operational details. Follow these practical guidelines to ensure accurate industrial procurement.
Confirm all operational parameters twice. Check the maximum allowable PSI ratings. Verify the exact GPM flow limits. Match the specific spool configuration directly to your schematic. Measure the internal inlet port sizes carefully. Outline specific valving functions clearly. Always spell out terms like "4-Way 3-Position Tandem Center" completely on your purchase orders.
Do not just buy the absolute cheapest option available online. Assess logistical factors heavily.
Evaluate shipping lead times for critical replacement parts.
Assess the availability of prompt, knowledgeable technical support.
Ensure the manufacturer adheres strictly to required industrial certifications. Missing an ISO or ATEX certification halts entire manufacturing lines during external safety audits.
A rigorously specified fluid circuit maximizes operational efficiency across your entire facility. It guarantees adherence to critical safety compliances. It significantly minimizes the thermal degradation of your expensive fluid.
Take immediate action today. Pull your current schematics. Audit them thoroughly. Document your required GPM limits, pressure thresholds, and exact actuation mechanisms. Reach out to a certified fluid power specialist if you discover any sizing uncertainties. Proactive specification analysis today absolutely prevents catastrophic machinery downtime tomorrow.
A: A standard directional module provides binary "on/off" control. It either fully opens or fully closes. A proportional unit modulates the internal spool position based on variable electrical signals. This offers precise, dynamic control over both flow direction and fluid acceleration simultaneously.
A: "4-Way" refers to the four operational fluid ports on the body: P, T, A, and B. "3-Position" indicates the internal spool has three distinct functional locations. These typically include an extend position, a retract position, and a stable neutral center state.
A: Generally, no. Manufacturers build fluid components from heavy-duty materials like cast iron or steel to withstand thousands of PSI. Pneumatic circuits handle much lower pressures. Manufacturers build them from lighter materials like aluminum. Porting configurations and exhaust logic also differ fundamentally.
