Have you ever brewed a perfect morning cup of coffee? If so, you have already witnessed a fundamental principle of fluid dynamics in action. A percolator disc coffee filter stops coarse grounds easily, allowing only the rich, dark liquid to drip into your mug. It is a simple, elegant solution for a small-scale task.
Out in the field, however, commercial farms face a dramatically larger water challenge. When you pump thousands of gallons of raw water from rivers, ponds, or deep wells, you introduce a chaotic mix of sand, algae, and biological sludge into your network. Clogged irrigation systems ruin crop yields every single day. A blocked emitter turns an otherwise profitable harvest into a logistical nightmare of uneven watering and starved plants. In this field guide, we will break down how the humble coffee filter concept scales up into industrial-grade agricultural technology, helping you make the most bulletproof equipment investment for your pump house.
The Evolution of Filtration: The engineering leap from a flat percolator disc (2D surface filtration) to a grooved irrigation stack (3D depth filtration) exponentially maximizes dirt-holding capacity.
Mechanism of Action: Modern agricultural units utilize tightly compressed, color-coded rings. These create a physical matrix that traps both organic slime and inorganic grit across multiple intersection points.
Automation is Non-Negotiable for Scale: Implementing a pressure-triggered automated system slashes manual labor costs and eliminates crop-damaging downtime.
Drip System Insurance: A properly sized water filtration system acts as a critical mechanical barrier. It prevents micro-clogging in drip emitters, ensuring uniform fertigation and precise water efficiency.
If you want to understand field-scale water treatment, look at your kitchen counter. A percolator disc coffee filter operates on two-dimensional surface filtration. You have a single, flat barrier—usually perforated metal or porous paper—with uniform holes. As hot water passes through, any coffee ground larger than those microscopic holes is physically stopped right on the surface.
This works perfectly for brewing a quick cup. But it has a glaring mechanical flaw: "cake formation." Once the surface area is covered with trapped grounds, the pathways for liquid choke off. Your flow rate plummets. In a kitchen, your morning brew takes a few extra minutes. But out in an agricultural setting? A rapid restriction in flow causes catastrophic pressure drops, blown pump seals, and disastrously uneven water distribution.
Filtering massive volumes of raw agricultural water requires a radical evolution. Instead of relying on a single flat surface, engineers developed a system that stacks hundreds of distinct, rugged plastic rings together.
Each ring features microscopic, diagonal grooves etched into both sides. Compress these discs tightly on a central spine, and the opposing grooves intersect. The result? A highly complex, three-dimensional maze. Consequently, water is forced to navigate a tortuous route. Particles aren't just stopped on the outer edge; they get trapped deep within the internal body of the filter matrix. This transition from 2D surface to 3D depth filtration radically increases the volume of debris the system can hold before the pressure drops.

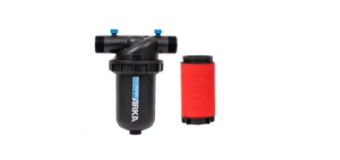

Pop open the housing of any commercial unit, and you will find the disc stack. These grooved rings are typically injection-molded from highly durable, chemical-resistant polymers like high-density polypropylene or glass-reinforced polyamide. Think about the harsh reality of a farm equipment pad: constant exposure to 10 Bar (145 PSI) pressure spikes, the abrasive friction of raw silica sand, and the corrosive bite of injected liquid fertilizers. The material choice ensures the stack survives these brutal conditions.
To standardize filtration across the industry, manufacturers use a universal color-coding system. The depth and width of the grooves dictate the exact micron rating.
Disc Color Code | Micron Rating | Mesh Equivalent | Typical Application |
|---|---|---|---|
Blue | 400 Micron | 40 Mesh | Pre-filtration for heavy debris, pivot systems |
Yellow | 200 Micron | 80 Mesh | Micro-sprinklers, large orifice landscape drip |
Red | 130 Micron | 120 Mesh | Standard agricultural drip tape, thin-wall drip |
Black | 100 Micron | 140 Mesh | Ultra-low flow drip emitters, pressure-compensating drip |
Green | 55 Micron | 200 Mesh | Foggers, specialized greenhouse misting |
Understanding the water flow is crucial for troubleshooting in the field. In a modern irrigation disc filter, raw water enters the outer housing under immense pressure. Unlike standard screen filters that might flow inside-out, this equipment operates on a strict outside-in path.
Specifically, many advanced units incorporate a directional helix baffle at the base. As water rushes in, this baffle forces the fluid into a rapid, swirling vortex. The centrifugal force flings heavier inorganic debris—like coarse sand—away from the delicate plastic stack and down into a lower flush chamber. The water then pushes inward through the intersecting grooves, snags the suspended solids, and travels down the hollow central spine out to your main line. This pre-separation helix significantly prolongs the time between cleaning cycles.
Looking at recent shifts in global agriculture, the move toward precision irrigation is accelerating at an unprecedented rate. Driven by erratic climate patterns and shrinking freshwater reserves, modern farms are increasingly forced to pump from lower-quality surface water sources. This industry-wide reality has triggered a massive transition away from basic barrier screens toward advanced depth filtration.
Today, agricultural operations can no longer afford the yield losses associated with micro-clogging. As fertigation (injecting nutrients directly into the water) becomes the standard for maximizing crop output, maintaining perfect hydraulic pressure across every zone is paramount. Consequently, automated depth filtration is rapidly transitioning from a "luxury upgrade" to a baseline requirement for any commercial-scale farm looking to future-proof its infrastructure.
Not every setup requires a computerized manifold. A manual unit is highly practical for small-scale plots, boutique greenhouses on clean municipal water, or budget-conscious setups where farmhands are readily available.
The manual cleaning process is straightforward but demands strict discipline. When your pressure gauges show a 5 to 7 PSI differential, the operator must shut off the water, depressurize the manifold, and unscrew the heavy housing. You extract the dripping stack, loosen the compression nut to separate the rings, and blast the muck out with a hose. It works, but it costs labor hours.
As acreage expands, manual cleaning quickly becomes a logistical liability. For commercial operations, upgrading to an automatic disc filter is a non-negotiable step toward modernization.
The mechanics behind an automated backflush are a marvel of fluid dynamics. Operation is governed by a digital controller linked to a differential pressure (DP) switch. This switch acts as the brain, constantly monitoring the pressure at the inlet and outlet. When the stack gets loaded with algae, the outlet pressure drops. Once this differential hits a pre-set threshold (usually around 7 to 10 PSI), the controller initiates the backflush cycle.
You will hear the sequence trigger in the field—a sudden whoosh of pneumatic valves. The inlet closes, the drain opens, and the pressure holding the stack together releases. Clean water from parallel filter pods is forced backward into the central core. High-pressure jets spray outward, causing the loosened discs to spin rapidly. This aggressive spinning, combined with reverse flow, forcefully dislodges trapped slime in seconds. The valves revert, the discs clamp shut, and watering resumes without a human ever touching a wrench.
Drip irrigation is exceptionally efficient, yet its success relies entirely on microscopic emitters. The orifices in modern drip tape often measure a mere 0.5mm to 1.2mm. Even a minor accumulation of field debris ruins the emission uniformity of a crop zone.
This is where grooved rings shine, particularly against organic matter. Biological contaminants like pond algae and bacterial slime are soft and squishy. Under the relentless pressure of a 50-horsepower pump, this stringy muck easily extrudes right through the square holes of a standard wire mesh screen. In contrast, the 3D depth matrix creates a rigid, multi-layered barrier that snags soft organics dead in their tracks.
To make a truly informed purchasing decision, you need to evaluate how this technology stacks up against older methods.
Screen filters use a stainless steel or woven plastic mesh cylinder. They behave exactly like the percolator coffee filter, relying strictly on 2D surface filtration. Screens are great for stopping hard, inorganic particulates like pipe scale. However, they fail miserably when surface water contains algae, allowing the slime to slip through. Grooved rings solve this specific failure point.
Sand media filters use massive carbon-steel tanks filled with crushed silica. Raw water percolates down through the deep sand bed. While media tanks offer the absolute highest level of organic holding capacity, they possess a massive physical footprint, weigh thousands of pounds, and require an exorbitant amount of clean water to backflush.
Grooved ring manifolds offer a comparable level of depth filtration but feature a highly compact, modular design. Most importantly, they require a fraction of the water and lower pressure to complete a backflush cycle compared to a hungry sand media tank.
Even the most advanced self-cleaning setups require human oversight. Establishing a strict Standard Operating Procedure (SOP) protects your capital investment.
Over several seasons, plastic grooves can become fouled by microscopic substances that a standard water backflush cannot dislodge. Hard well water (high in calcium or magnesium) causes mineral calcification, literally cementing the rings together. This requires a dedicated acid wash. Farmhands soak the separated discs in a diluted solution of hydrochloric or phosphoric acid to dissolve the minerals. Furthermore, heavy biological growth may leave a stubborn, sticky biofilm. Soaking the rings in a chlorine solution will rapidly oxidize and strip away this residue.
Always monitor your Delta-P (pressure differential). If the gauge reads consistently high immediately following a cleaning cycle, inspect the hydraulic command tubes for blockages or check if the central compression cylinder is failing to retract.
Procuring agricultural infrastructure is not a one-size-fits-all endeavor. Selecting the appropriate hardware involves analyzing your water source, calculating flow requirements, and understanding real-world operational limits.
The most critical factor is matching the maximum flow capacity to your system's demands. For example, a standard self-cleaning disc filter with a 2-inch connection is typically optimized for flow rates around 20 to 25 m³/h (88 to 110 GPM). If you push 40 m³/h through that same 2-inch unit, the water velocity increases far beyond engineering limits. This violent velocity forcefully rams hard debris deep into the microscopic grooves, causing permanent scoring.
Industry best practice dictates sizing your manifold so that your normal operating flow rate sits at approximately 75% to 80% of the maximum rated capacity. This buffer safely absorbs temporary pressure spikes and unexpected algae blooms.
Selecting a micron rating that is too fine for your water source results in rapid clogging and continuous, wasteful backflushing. For municipal or relatively clean well water, a 130 Micron (120 Mesh) red disc is the industry standard for drip tape. If you are pumping from an open canal heavily loaded with organic matter, you might need to step down to a 200 Micron (80 Mesh) yellow disc, provided your emitter orifice size allows for it. Always check your drip tape manufacturer's warranty requirements regarding mesh size.
Filtration technology has advanced at a staggering pace. The relatable concept of a percolator coffee filter has been reverse-engineered into a rugged, 3D depth matrix capable of protecting hundreds of acres of precision irrigation. By stopping organic and inorganic debris before it reaches your field, you maintain uniform pressure, optimize fertigation, and ultimately protect your bottom line.
Ready to eliminate clogged emitters, reduce labor costs, and protect your crop yields? At Arka Irrigation, we engineer robust, high-efficiency filtration solutions tailored for commercial agriculture. Visit www.arka-irrigation.com to explore our advanced automated manifolds and find the exact specifications required to bulletproof your farm's water infrastructure today.
Yes, but it requires proper upstream design. If your well produces a heavy, continuous load of abrasive sand, relying solely on the plastic rings will overwhelm the grooves and cause premature wear. In these scenarios, engineers strongly recommend installing a hydrocyclone sand separator immediately upstream. The hydrocyclone spins out up to 90% of the heavy sand before the water touches the plastic rings, leaving the filter to act as a final polishing stage for fine silt.
Within the commercial irrigation industry, these two terms are synonymous and used interchangeably. Both describe a sophisticated manifold equipped with a digital controller, hydraulic valves, and a pressure differential switch that automatically reverses water flow to wash out trapped debris without manual intervention.
Thanks to high-grade, UV-resistant polymers, a quality stack can easily last five to ten years under standard agricultural use with regular backflushing. Replacement is usually only necessary if the system has been severely neglected—such as permanent calcium scaling that acid washing cannot fix, or abrasive sand scoring the grooves flat.
Because algae is soft, slimy, and highly malleable, the immense pressure of an irrigation pump simply extrudes the biological matter right through the square holes of a 2D steel screen. The tightly compressed, intersecting diagonal grooves of a 3D depth matrix create a tortuous maze that snags soft organic matter deep within its body, preventing it from pushing through to the clean water side.
Most commercial units require a minimum operating pressure of roughly 15 to 20 PSI (1 to 1.4 Bar) to keep the internal hydraulic mechanisms functioning during normal flow. However, the automated backflush cycle requires significantly more kinetic energy to separate the compressed rings and spin them. Manufacturers generally require a strict minimum of 40 to 45 PSI (2.8 to 3.1 Bar) at the downstream valve during the flush sequence.
To manually clean the system, first shut off the main water pump and open a flush valve to completely depressurize the housing. Unscrew the outer cover, remove the entire internal spine, and loosen the top compression nut so the rings can separate loosely. Using a high-pressure hose or pressure washer, spray the rings from the outside in while spinning them to dislodge trapped dirt. Once clean, re-tighten the compression nut, seat the spine back into the housing, and secure the cover.
For standard agricultural thin-wall drip tape, the industry standard is 130 microns, which is equivalent to 120 mesh. This is universally denoted by red-colored rings. This rating provides the perfect balance: it is fine enough to prevent micro-clogging in standard 0.5mm to 1.0mm emitters, but porous enough to prevent the system from constantly triggering backflush cycles when processing typical surface water.
