Choosing the wrong fluid control component goes far beyond a minor operational hiccup. It blows hydraulic lines, destroys expensive pumps, and bleeds money through extended machinery downtime. Hydraulic manual spool monoblock valves handle extreme, punishing pressures that would instantly shatter standard plumbing fixtures. Water valves, by contrast, simply cannot survive these harsh, high-friction conditions.
In this engineering guide, we will break down exactly why these systems are strictly incompatible. By comparing their unique control logic, internal anatomy, and pressure-handling capabilities, system designers and equipment buyers will gain the technical insights required to specify the correct component for their specific fluid power application.
Hydraulic manual spool monoblock valves utilize a sliding cylindrical metal spool housed within a single cast-iron block to direct high-pressure oil, providing precise and proportional fluid control.
Water hydraulic systems depend on flexible mechanisms like diaphragms for managing lower-pressure, high-volume fluid transfers using binary on and off logic.
The mechanical control logic of oil hydraulics gives operators direct tactile feedback and multi-directional flow capabilities, whereas water valves react primarily to simple pressure differentials.
Selecting the correct component requires a rigorous evaluation of fluid viscosity, material compatibility, and maximum system pressure ratings to prevent catastrophic field failures.
To truly understand how high-pressure fluid systems operate, we must look under the hood at the foundational components directing fluid power. Hydraulic manual spool monoblock valves serve as the rugged, industry-standard backbone for mobile machinery, agricultural equipment, and heavy industrial applications. In these environments, reliable, brute-force transmission is non-negotiable.
The term monoblock refers directly to the manufacturing and structural design of the valve housing. Instead of bolting multiple individual sections together, which inevitably introduces vulnerable seams, a monoblock valve is machined from a single, solid piece of cast iron or high-strength steel. This unified construction internally houses all fluid passages, work ports, and galleries.
From a field engineering standpoint, this seamless design is absolutely critical. When a tractor or industrial log splitter pushes hydraulic oil at operating pressures exceeding 3,000 PSI, any structural seam or degraded O-ring becomes a potential blowout point. By utilizing a continuous casting, monoblock valves significantly reduce the risk of high-pressure leaks. Furthermore, they ensure maximum structural rigidity under twisting mechanical stress while maintaining a compact footprint suitable for the tight installation spaces found on modern mobile equipment.
Deep inside that heavy cast-iron housing lies the core directional control mechanism: the spool. Picture a precisely machined steel cylinder featuring a series of raised sections known as lands and recessed sections referred to as grooves or undercuts. This spool fits into the valve bore with extremely tight tolerances, often measured in mere micrometers.
When an operator physically pulls or pushes the external control lever, they are acting directly on the manual hydraulic valve. This mechanical input slides the spool back and forth within the bore. As the spool moves, the lands block certain fluid pathways while the grooves align with internal ports to open new ones. Specifically, this sliding action directs the highly pressurized oil from the pump to specific actuators, like the lift cylinders of a loader, and simultaneously routes the low-pressure return fluid safely back to the reservoir.
To fully grasp the unique control logic of hydraulic spool valves, we must contrast them with water hydraulic valves. While both devices fundamentally regulate fluid flow, water systems are engineered for entirely different environmental conditions and physical parameters. This divergence in purpose leads to vastly distinct mechanical designs.

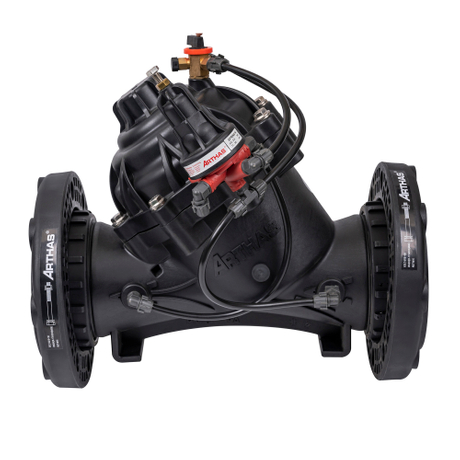

Unlike oil hydraulic systems that rely on incredibly tight metal-to-metal tolerances, water systems predominantly utilize flexible barriers to control flow. The most common mechanism in this arena is the diaphragm control valve. Instead of a sliding metal cylinder, this valve features a flexible membrane manufactured from heavy-duty rubber, EPDM, or synthetic elastomers.
The diaphragm sits squarely over the valve seat, effectively blocking the flow of water. When the pressure above the diaphragm is released, the incoming line pressure pushes the flexible membrane upward. This action opens the seat and allows fluid to rush through. When pressure is reintroduced above the diaphragm, it flexes back down to seal the pathway. This flexing mechanism is highly tolerant of sand, algae, and particulates commonly found in untreated water. Such debris would instantly jam and destroy a precision-machined metal spool.
Water hydraulic valves are optimized for one primary task: moving massive volumes of low-viscosity fluid with minimal pressure drop. In agricultural irrigation or municipal water distribution, the ultimate goal is volume transfer rather than mechanical force generation. Consequently, these valves feature large, sweeping internal flow paths to minimize fluid friction and turbulence, ensuring that thousands of gallons of water can move efficiently across miles of piping.
The most critical distinction between oil hydraulic valves and water valves lies in their control logic. This logic dictates how the valve interprets operator input and subsequently controls fluid behavior.
Hydraulic manual spool monoblock valves are engineered specifically to provide proportional control. This means the volume of fluid passing through the valve is directly proportional to the physical displacement of the operator control lever.
As the operator slowly eases the lever backward, the specially chamfered edges of the spool lands gradually uncover the internal ports. This gradual opening, known in the industry as metering, allows the operator to precisely dictate the speed of the hydraulic actuator. Imagine an operator lifting a heavy concrete pipe with an excavator. They can pull the lever just a fraction of an inch to move the boom at a creeping pace, or pull it fully to achieve maximum lifting speed. This proportional logic is absolutely essential for the safe, deliberate operation of heavy, suspended loads.
In stark contrast, water valves generally operate on binary logic. A diaphragm valve is designed to be either fully open or fully closed. While some highly specialized water valves can modulate flow to a degree, standard water mechanisms do not offer the fine, variable-speed metering found in spool valves.
Because water lacks the viscosity to hold a stable pressure gradient across a partially opened metal restriction without causing severe turbulence, diaphragm valves rely on rapid, complete opening to allow full flow. This binary logic is perfectly suited for filling municipal tanks or activating crop sprinkler lines, where variable actuator speed is simply not a requirement.
Fluid power systems are defined by their operating pressures. The distinct ways these valves manage internal forces further highlight their divergent structural requirements and control logic.
Mobile hydraulic systems routinely operate at extreme pressures ranging from 2,500 to well over 5,000 PSI. At these levels, a sudden stop, such as a loader bucket striking an immovable stump, can cause dangerous, instantaneous pressure spikes. To mitigate this kinetic energy, monoblock designs integrate a built-in pressure control valve, commonly referred to as a main relief valve.
This internal bypass mechanism constantly monitors system pressure. If the pressure exceeds a pre-set safety threshold, the relief valve instantly opens against a heavy calibrated spring. It dumps the excess pressurized oil directly back to the reservoir. The heavy cast-iron monoblock housing provides the immense tensile strength required to contain these forces without fracturing, preventing blown hoses and shattered pumps.
Water systems operate in a vastly different, much gentler pressure paradigm, typically ranging between 12 and 150 PSI. However, because water is practically incompressible and lacks the dampening characteristics of thick oil, sudden valve closures can cause water hammer. This is a destructive kinetic shockwave traveling through the pipes.
Rather than using heavy-duty mechanical relief valves designed for thousands of PSI, water valves utilize pressure-reducing pilots and slow-closing diaphragm mechanisms. By carefully controlling the rate at which the water bleeds off the top of the diaphragm, the valve closes gradually. This absorbs the kinetic energy of the moving water, effectively preventing pipe rupture and joint failure.
Specification Feature | Hydraulic Spool Monoblock Valve | Water Diaphragm Valve |
|---|---|---|
Primary Fluid | High-viscosity hydraulic oil | Low-viscosity water |
Operating Pressure | Extreme 2,500 to 5,000+ PSI | Low to Moderate 12 to 150 PSI |
Control Logic | Proportional variable speed metering | Binary fully open or fully closed |
Internal Mechanism | Precision-machined sliding steel spool | Flexible synthetic rubber membrane |
Debris Tolerance | Extremely low requires fine filtration | High handles sand and particulates |
The method by which the valve is actuated demonstrates the operational focus of the respective fluid systems.
In heavy equipment operation, safety relies heavily on the physical connection the operator has to the machine. A manual switch valve provides crucial tactile feedback. Because the metal spool is mechanically linked directly to the lever, the operator can actually feel the resistance of the pressurized hydraulic fluid pushing against the spool as it shifts.
Building upon this principle, this feedback allows an experienced operator to physically sense the weight of a suspended load or the resistance of packed soil against a tractor implement. The physical effort required to shift the spool changes dynamically based on the system pressure. This delivers an intuitive, real-time understanding of machine status.
Water valves are rarely operated via direct manual spools. The physical distance between the operator and the valve in sprawling agricultural or municipal settings makes manual levers entirely impractical.
Instead, they rely on internal pilot holes or electronic solenoids. A tiny electric solenoid opens a pilot port, changing the pressure differential across the rubber diaphragm. The main line pressure then does the heavy lifting of opening the valve. This automated actuation logic prioritizes remote convenience and system-wide automation over tactile operator feedback.
Field engineers frequently face a critical question during system design: Can a water valve be used for oil, or an oil valve for water? The empirical answer is a resounding no. This limitation is dictated by the strict laws of fluid dynamics and material science.
Hydraulic oil is not just a medium for transmitting power; it is a vital lubricant. Hydraulic manual spool monoblock valves rely entirely on the oil to lubricate the microscopic gap between the sliding steel spool and the cast-iron bore.
Water has virtually zero lubricity. If water were pumped through a standard hydraulic spool valve, the metal-on-metal friction would generate immense heat. This would immediately cause the spool to gall, deeply scratch the bore, and ultimately seize in place. In addition, introducing water to standard cast iron components results in rapid oxidation, destroying the strict tolerances required to hold high pressure.
Beyond lubrication, the low viscosity and high vapor pressure of water make it entirely unsuitable for high-pressure spool metering. When high-pressure water is forced through the narrow metering notches of a spool valve, its velocity increases dramatically. This causes severe localized pressure drops.
These drops cause the water to vaporize into microscopic bubbles. As the pressure normalizes, these bubbles collapse with explosive force through a destructive process known as cavitation. In a matter of hours, cavitation will pit and erode hardened steel spools. Consequently, water valves are constructed from materials immune to rust and highly resistant to cavitation, such as brass, specialized reinforced plastics, and stainless steel.
As industrial and agricultural sectors push for greater efficiency, the control logic governing fluid power is rapidly evolving. In the realm of mobile machinery, engineering trends show a massive shift toward electro-hydraulic integration. While traditional manual spool monoblock valves remain the bedrock for their rugged reliability, manufacturers are increasingly outfitting them with proportional solenoids. This hybrid approach enables precise remote control via joysticks or automated GPS systems, which is critical for modern precision agriculture and autonomous construction equipment. Yet, they purposefully retain the manual lever as a mechanical fail-safe.
On the other side of the spectrum, water hydraulic systems are heavily influenced by global water conservation mandates. Traditional diaphragm valves are now frequently paired with smart Internet of Things sensors. These connected valves can automatically adjust flow rates based on real-time soil moisture data or municipal demand algorithms. They are moving beyond simple binary logic into predictive, automated fluid management. Despite these impressive technological advancements, the fundamental mechanical divide between high-pressure oil spools and low-pressure water diaphragms remains absolute.
Selecting the correct directional control mechanism is a critical engineering decision. It directly impacts machinery performance, safety, and longevity. System designers must evaluate multiple technical parameters to ensure system reliability.
Before procurement, buyers should compile a strict operational checklist based on empirical system data:
Maximum Operating Pressure: Does your pump output 2,000 PSI or 4,500 PSI? The valve housing must be rated to safely handle the maximum potential pressure spike of your system.
Flow Rate Gallons Per Minute: The internal port sizing must match the output of your pump. Undersized valves create restrictive bottlenecks, leading to excessive heat generation and fluid velocity issues.
Spool Configuration: Do you require an open-center or closed-center configuration? Mismatching your valve to your pump type will result in immediate system failure or extreme overheating.
Matching the control logic and material design of the valve to the exact needs of your machinery is the most critical step in fluid power design. Using inadequate components invariably leads to sluggish cylinder movement, overheating fluid, and premature pump failure.

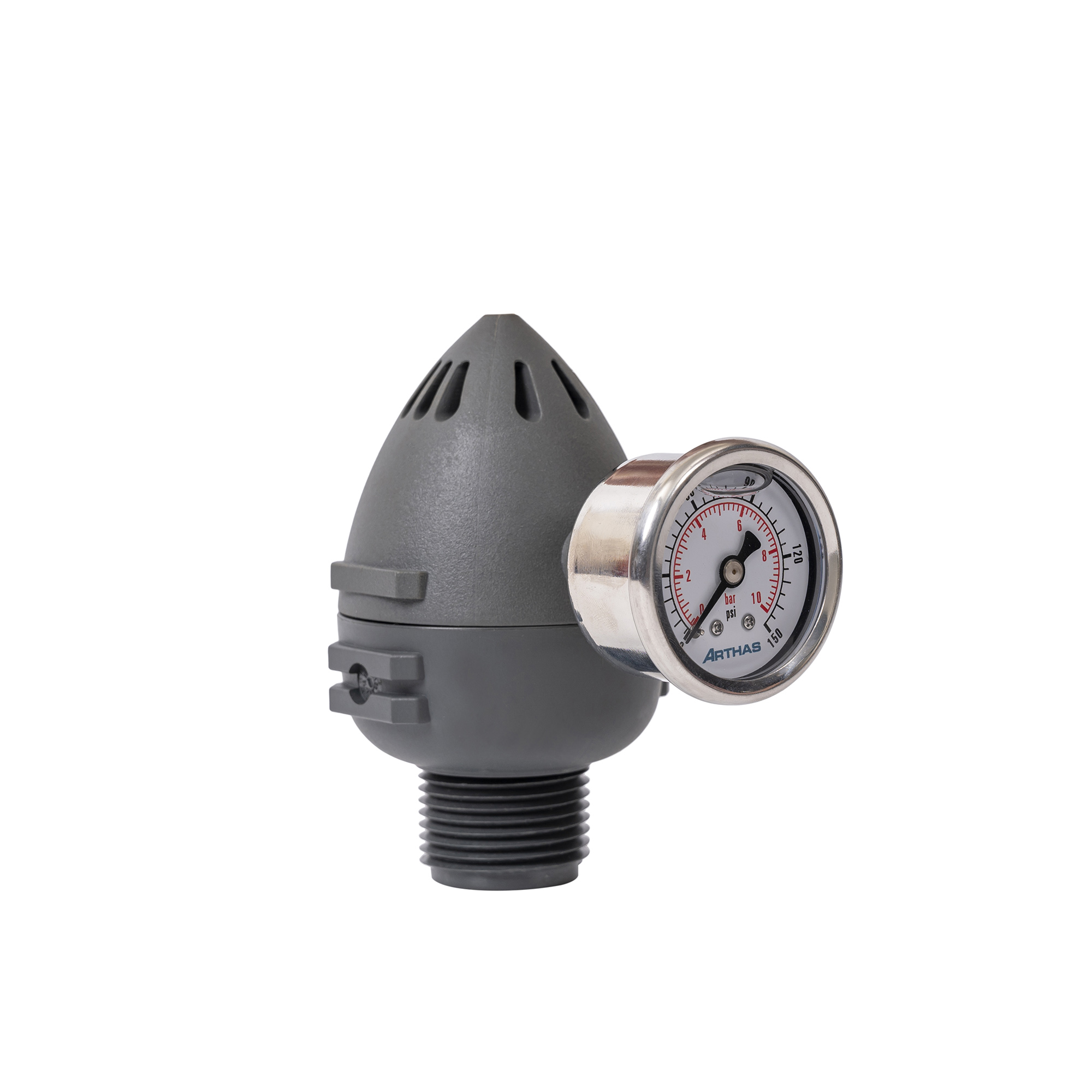

Whether you are upgrading auxiliary hydraulics on an excavator or building a custom drip irrigation circuit, utilizing application-specific components ensures reliable performance. For instance, if you are designing a low-pressure agricultural watering system, an irrigation flow valve like the AS110PR Arthas 4-inch pressure reducing valve is the precise engineering choice. Engineered with reinforced nylon, it expertly handles low-pressure ranges between 0.8 to 4.0 bar while resisting corrosion. However, for heavy machinery requiring tons of mechanical force, prioritizing correct spool configurations and robust cast-iron monoblock construction guarantees your equipment operates safely under punishing industrial conditions.
Hydraulic manual spool monoblock valves offer precise, proportional control engineered exclusively for managing high-pressure oil in heavy machinery. By utilizing a sliding metal spool within a solid cast-iron housing, they provide operators with the tactile feedback and structural durability needed to move massive loads safely.
In contrast, water valves utilize flexible diaphragms and binary control logic optimized for moving large volumes of low-viscosity fluid at very low pressures. Understanding these fundamental mechanical and logical differences prevents catastrophic system failures, blown lines, and wasted capital. When designing or repairing a fluid power system, always verify your operating pressure, flow rates, and fluid type. For industry-leading water management and precision irrigation valve solutions tailored to your exact flow requirements, explore the technical catalog at Arka Irrigation to specify the right component today.
No, you absolutely cannot use water in these high-pressure oil valves. Hydraulic systems rely entirely on the natural lubricity of hydraulic oil to create a microscopic hydrodynamic film between the sliding metal spool and the cast-iron bore. Water possesses virtually zero lubricity. If introduced into a spool valve, the metal-on-metal friction generates immense heat, causing the spool to gall, score the internal housing, and seize permanently. Furthermore, water causes severe oxidation on unprotected steel components and leads to destructive cavitation at high pressures.
The primary advantage of a monoblock design is its single-piece cast construction. Because the entire valve body is poured as one solid block of iron or steel, there are no seams, mating surfaces, or O-rings between individual spool sections. This inherently eliminates the risk of inter-sectional leaks, making monoblock valves exceptionally reliable at high pressures. Additionally, this unified construction results in a more compact physical envelope, which is ideal for mobile machinery with limited installation space.
A diaphragm control valve and a spool valve operate on entirely different mechanical principles suited for different fluids. A diaphragm valve uses a flexible synthetic rubber membrane that flexes up and down in response to pressure differentials to block or allow fluid flow. This design has no sliding metal parts, making it highly tolerant of dirt, which is why it is the standard for water. Conversely, a spool valve uses a precisely machined metal cylinder that slides horizontally across internal ports to direct high-pressure oil, offering multi-directional routing and proportional flow control.
Yes, the vast majority of industrial and mobile manual hydraulic valves feature an integrated pressure control valve, commonly known as a main relief valve. This component is critical for system safety. If the hydraulic system encounters an excessive load, such as a cylinder deadheading, the pressure spikes instantly. The relief valve senses this over-pressurization and opens, safely bypassing the hydraulic fluid back to the reservoir tank to prevent blown hoses or ruptured pump housings.
A manual switch valve that is stiff or hard to shift usually indicates an underlying mechanical or hydraulic issue. The most common cause is excessive backpressure on the tank return port. If the return line is restricted, pressure builds up behind the spool, creating a hydraulic lock. Another frequent cause is fluid contamination. Microscopic dirt or metal flakes can wedge between the tight tolerances of the spool and the bore, causing physical binding. External factors like bent lever linkages or rusted pivot pins can also mimic internal valve stiffness.
Installing an undersized valve creates a severe restriction in your hydraulic circuit. Because the internal ports are too small for the volume of oil the pump is pushing, fluid velocity increases dramatically. This restriction generates massive amounts of friction and heat, rapidly degrading the hydraulic oil and damaging pump seals. The machinery will also suffer from sluggish actuator response and significant power loss.
The choice depends entirely on your hydraulic pump type. If your machinery uses a fixed displacement pump, which constantly flows oil, you must use an open-center valve. This allows the continuous flow of oil to pass through the valve and return to the tank when the levers are in neutral. If you use a variable displacement pump that only produces flow on demand, you need a closed-center valve. This blocks flow in neutral, signaling the pump to stop pumping until an operator shifts a lever.
