Operating heavy machinery, industrial equipment, or complex agricultural irrigation networks demands absolute precision, stringent safety protocols, and unwavering reliability. The methodology employed to govern fluid power ultimately dictates the overall efficiency and operational longevity of the entire setup. For engineers and equipment buyers, evaluating the correct actuation mechanism is a critical design decision. It directly impacts everything from daily operator productivity to long-term maintenance budgets and overall commercial profitability.
Current industry analyses reveal a rapid evolution in fluid power governance. Driven by stringent ISO safety regulations and a relentless push for ergonomic automation, equipment manufacturers are aggressively decoupling the operator interface from high-pressure danger zones. While electro-hydraulic (EH) setups frequently grab media headlines for their digital integration, veteran engineers know the reality of the field. The raw durability, immediate tactile feedback, and cost-efficiency of mechanical and fluid-piloted systems ensure they remain the dominant, practical choice for truly harsh environments. The ongoing engineering debate no longer centers on whether to remote-mount valves, but rather on selecting the optimal physical actuation mechanism for specific environmental stressors.
Operators frequently face the technical dilemma of choosing between traditional physical linkages and fluid-based pilot control systems. Implementing an inadequate control mechanism inevitably leads to accelerated operator fatigue, unexpected system sluggishness, or costly mechanical downtime. A remote valve cable control lever for hydraulic spool valves serves as a highly reliable, field-proven solution for distance operation. By physically separating the operator from the main hydraulic circuit, this mechanism drastically enhances cabin safety without sacrificing precise, tactile control.
A remote valve cable control lever for hydraulic spool valves provides operators with tactile, direct control over heavy machinery from a safe, isolated distance, typically inside a reinforced, climate-controlled cab.
Mechanical control systems are widely specified for their structural simplicity, cost-effectiveness, and ease of field maintenance. This makes them the undisputed industry standard for mobile hydraulics and earth-moving equipment.
Hydraulic water control utilizes fluid pressure to actuate valves, offering exceptionally smooth, low-effort operation over massive distances. This is highly beneficial in large-scale agricultural and municipal fluid management.
System selection hinges on specific operational parameters. Direct mechanical linkages are optimal for sensory feedback and emergency load-holding, whereas fluid-piloted controls excel in automated, high-volume, or widely distributed fluid networks.
To make an informed engineering or purchasing decision, you must first grasp the foundational components of remote actuation. At its core, a control system must effectively translate human input into hydraulic output without introducing excessive latency or fragile mechanical failure points.
A mechanical remote control system bridges the physical gap between the operator's input device—typically a joystick or dual-axis lever—and the hydraulic spool valve. This vital connection is achieved utilizing heavy-duty push-pull cables. These specialized cables consist of a high-tensile, flexible inner core wire that glides smoothly within a reinforced, permanently lubricated outer conduit.
Picture an operator sitting inside an excavator cabin. When they actuate the lever, the inner wire physically pushes or pulls the spool located inside the valve body, which is securely mounted outside on the vehicle chassis. The spool's primary function is to direct highly pressurized hydraulic fluid to specific actuators, such as hydraulic cylinders or rotary motors. By utilizing this remote mechanism, the heavy, heat-radiating valve block is kept far away from the operator's immediate workspace, mitigating noise and thermal hazards.
In legacy configurations, a manual control valve relies on direct physical force applied to a lever bolted straight onto the valve body. Moving this entire assembly outside the cabin via a remote cable setup drastically reduces the operator's exposure to deafening hydraulic whine and the catastrophic risk of high-pressure oil atomization.
Furthermore, complex mobile machinery often requires the management of multiple hydraulic circuits without cluttering the cab with redundant levers. To solve this, a hydraulic switch valve (frequently referred to as a diverter valve) is integrated into the circuit. An operator can use a single mechanical joystick to manipulate a loader boom, press a button to engage the switch valve, and seamlessly redirect that exact same joystick's fluid output to a grapple attachment. This mechanical integration maximizes the utility of existing hydraulic pumps while minimizing operator cognitive load.
Mechanical cable systems rely on fundamental physics to transmit linear force. Despite advancements in digital controls, they remain the standard for specific mobile applications due to their highly predictable performance and physical durability under duress.
One of the most significant engineering advantages of a physical linkage is the preservation of tactile feedback. Because the lever is rigidly connected to the spool via the inner wire, operators can literally "feel" the hydraulic backpressure and the load's resistance right through the handle.
This physical feedback loop is absolutely critical for delicate, high-stakes operations. For example, when lowering a 2-ton pallet of fragile masonry with a skid steer loader, the operator must make micro-adjustments. The mechanical cable allows them to feel the exact engagement point of the spool shifting against the centering springs, enabling smooth, proportional feathering. Fluid-piloted or purely electronic systems often artificially dampen this feedback, making mechanical setups superior where millimeter-perfect adjustments are mandatory.
Beyond operator feel, mechanical remote systems offer several verifiable operational benefits for equipment manufacturers and end-users. They demand a substantially lower initial capital investment compared to complex pilot-pressure manifolds. Diagnostic procedures are visually straightforward; if a system fails in the field, a mechanic can immediately identify a snapped cable or a backed-off clevis thread without requiring digital multimeters. Modern cables also feature UV-resistant polymer jackets and stainless-steel cores, allowing them to perform reliably in environments saturated with abrasive dust or corrosive salt.
However, despite their ruggedness, mechanical systems possess inherent physical limitations. Push-pull cables are continuously subject to internal mechanical friction. Engineers generally advise capping cable lengths between 3 to 5 meters (10 to 15 feet). Beyond this threshold, the cumulative friction of the core wire dragging against the curved conduit becomes ergonomically unacceptable, resulting in a "spongy" lever feel and rapid operator fatigue.
In stark contrast to physical cables, operational requirements frequently exceed mechanical distance limits. When managing sprawling infrastructure, engineers transition to fluid-based control mechanisms. These systems utilize the principles of fluid dynamics to pilot and actuate main control valves, entirely replacing the physical push-pull wire with a hydraulic or water-filled pilot tube.
In a fluid-piloted system, the operator's input device directs a very small volume of low-pressure fluid to the end caps of the main directional spool valve. Because liquids are virtually incompressible, this hydraulic signal effectively pushes the heavy main spool open or closed. This methodology requires mere ounces of physical effort from the operator, completely eliminating the mechanical binding associated with physical cables.
This pilot actuation technology is heavily relied upon in the agricultural and municipal sectors. In massive farming operations, running physical steel cables over hundreds of meters is an engineering impossibility. Instead, these networks utilize the inherent pressure from the mainline water pipe.

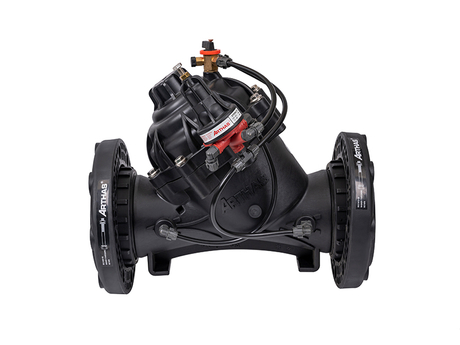

By installing a specialized water flow control valve, facility managers can tap a small pilot line directly into the main water source. For instance, advanced polymer valves like the AS110PR Arthas 4-inch Pressure Reducing Valve are specifically designed for precision drip irrigation. Featuring a glass-filled nylon body and a robust rolling diaphragm, these units utilize the system's own mainline pressure (often ranging up to 150 PSI) to pilot the network. A tiny solenoid directs this pressure into the diaphragm chamber, forcing it down to seal the valve shut against massive flow rates.
Similarly, an automated irrigation valve relies on this exact principle to manage crop watering schedules across a 50-acre field. Releasing the pilot pressure allows the mainline water flow to push the diaphragm upward, opening the valve. Utilizing the system's own fluid pressure to pilot the network is an elegant, self-sustaining engineering solution that requires minimal external power.
Choosing between these two distinct technologies requires a meticulous evaluation of the machinery's operational theater. To assist buyers and engineers in aligning the correct mechanism with their specific commercial needs, we have compiled a direct technical comparison.
Feature / Specification | Mechanical Cable Control | Hydraulic Water Control |
|---|---|---|
Responsiveness & Feel | Instantaneous, 1:1 proportional tactile feedback. | Exceptionally smooth, low-effort, but lacks physical load feedback. |
Effective Distance | Limited to 3 - 5 meters (10 - 15 feet). | Virtually unlimited; can span hundreds of meters. |
Maintenance Focus | Greasing pivots, inspecting clevis joints and cable jackets. | Rigorous fluid conditioning, filter replacements, clearing pilot ports. |
Initial Capital Cost | Low barrier to entry; highly cost-effective. | Higher initial investment (requires manifolds, pilot tubing). |
Best Application | Mobile hydraulics, tractors, forklifts, emergency winches. | Agricultural irrigation, municipal water treatment, automated fluid networks. |
Specifying the correct components demands a systematic appraisal of your machinery's operating parameters. Abstract concepts must be translated into actionable selection criteria to prevent costly operational downtime.
First, strictly evaluate the physical routing distance between the operator's seat and the main valve bank. If the routing distance is under 5 meters, a mechanical cable system is your most reliable and economical choice. If the distance exceeds this, or if the layout requires multiple sharp turns, you must transition to a fluid-piloted system to avoid deadband and friction lock.
Next, assess the sensory requirements of the task. High-pressure systems handling massive, unpredictable loads—such as adjusting a pressure control valve on a heavy-duty crane—absolutely require the robust physical override capabilities that only a physical steel linkage can guarantee. Conversely, if the system involves repetitive, high-volume cycles like greenhouse irrigation, the fatigue-reducing nature of hydraulic pilot control is paramount.
Operating environments heavily dictate system longevity. In sub-zero winter climates, ambient moisture trapped inside mechanical cable conduits can freeze solid, completely locking the controls. Specifying sealed, cold-rated cables is a necessity here. On the other hand, water-piloted systems require strict anti-freeze protocols or automatic dump valves to prevent pilot pipes from bursting during unexpected freezes.
Even the highest-quality actuation mechanism will fail prematurely if installed poorly. Proper installation techniques and rigorous maintenance protocols are required to ensure maximum operational lifespan.
When installing a mechanical remote cable control lever, follow a systematic approach. Securely mount the lever control box to a rigid structure within the cabin; any flex in the mounting bracket will absorb the operator's input, reducing precision. Route the push-pull cable using broad, sweeping curves rather than sharp angles. Forcing a push-pull cable into a tight 90-degree corner will drastically spike internal friction, leading to a snapped core wire within weeks. Finally, when attaching the cable clevis to the spool valve, ensure the threading provides an equal throw distance in both the push and pull directions to prevent bottoming out.
For fluid-based systems, routine preventative maintenance is non-negotiable. Operators must periodically test and calibrate pressure relief settings to ensure the hydraulic circuit is not over-pressurized, which can violently blow out seals and destroy expensive pumps. For agricultural applications, establishing a strict seasonal schedule for flushing water lines is vital to keep tiny pilot ports free of sediment, aggressive algae, and hard mineral scale buildup.
Yes. Most standard manual spool valves can be easily retrofitted with a dedicated cable control kit. This mechanical modification allows you to relocate the heavy, heat-generating valve body safely outside the cab while securely keeping the ergonomic control lever within easy reach of the operator.
While custom push-pull cables can be manufactured to longer specifications, mechanical cables generally operate optimally under 10 to 15 feet (3 to 4.5 meters). Beyond this physical distance, internal friction against the conduit makes the lever exceedingly stiff, increases operator fatigue, and significantly degrades tactile feedback.
A standard directional spool valve directs hydraulic fluid to extend or retract a specific cylinder. A hydraulic switch valve, frequently called a diverter valve, takes the active pressurized flow from one primary circuit and diverts it to a secondary circuit. This allows an operator to control multiple distinct implements using a single joystick or lever.
In remote agricultural environments, running electrical wiring over long distances is cost-prohibitive and highly susceptible to environmental damage, such as lightning strikes, soil shifting, or rodent damage. Utilizing the existing water pressure already present within the mainline pipes to pilot the valves is highly efficient, reliable, and entirely self-sustaining.
Verifiable signs of impending failure include erratic or jerky cylinder movement, excessive whining or cavitation noises emanating from the hydraulic pump, visible fluid leaks around the valve block, or a sudden inability to lift standard operational loads. Regular pressure testing with calibrated diagnostic gauges is strongly recommended to catch these issues early.
A stiff lever is almost always caused by internal cable friction or improper routing. First, inspect the cable path for sharp bends or pinches and reroute it to use broad, sweeping curves. If routing is correct, the inner core wire may be corroded or the conduit lining worn out. In such cases, attempting to force lubricant down the jacket is only a temporary fix; replacing the heavy-duty push-pull cable entirely is the safest engineering solution.

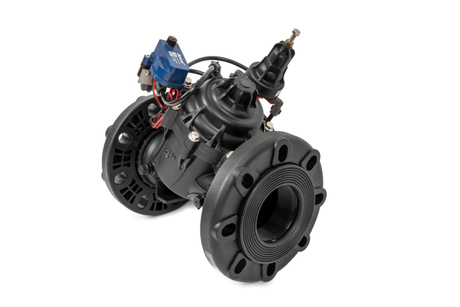

Absolutely. Modern hydraulic water control valves can be easily equipped with low-voltage latching solenoids on their pilot lines. This allows them to interface seamlessly with IoT-enabled irrigation controllers, enabling farm managers to adjust water flow, monitor pressure drops, and automate watering schedules remotely via smartphone applications or centralized telemetry dashboards.
Selecting the optimal control mechanism is the foundation of a reliable, efficient fluid power system. Whether your operation demands the rugged, tactile precision of a mechanical cable control lever for heavy mobile machinery, or the automated, long-distance capabilities of hydraulic water control for sprawling irrigation networks, specifying the right components is crucial. For facility managers and engineers looking to upgrade their agricultural or municipal fluid management systems with robust, field-tested solutions—such as high-performance pressure reducing valves and automated water control systems—explore the comprehensive technical catalog at ARKA Irrigation to find the exact specifications required for your next project.
