Are standard catheters causing too many dangerous blood clots? Open-ended lines carry high backflow risks for patients. This reality severely complicates long-term intravenous therapies. As engineers dealing with fluid dynamics, we view this as a classic flow-control problem. Valved catheters safely solve this complex medical issue. They integrate microscopic mechanical barriers directly into the bloodstream.
In this comprehensive guide, we bridge the gap between clinical application and the fundamental physics of fluid dynamics. You will learn exactly how these micro-valves function, why material selection matters, and how pressure differentials dictate their design.
A tunneled central venous catheter with a pressure-sensitive valve is a reliable, long-term medical device. It actively prevents blood backflow and eliminates the need for routine heparin flushes.
The internal valve operates on a precise three-way mechanical system. It opens outward for fluid infusion, opens inward for blood aspiration, and remains tightly closed at neutral resting venous pressure.
Fluid dynamics heavily dictate the engineering of these devices. Designers must account for the varying viscosities of human blood, saline, and thick nutritional fluids.
The core mechanics share foundational physics with large-scale industrial systems. They utilize principles strikingly similar to heavy-duty hydraulic regulation equipment.
Choosing a tunneled valved catheter over a non-tunneled open-ended line depends on treatment duration, fluid type, and strict clinical safety protocols.
To fully appreciate the engineering behind modern vascular access devices, we must examine both their anatomical placement and their internal mechanical design. A tunneled central venous catheter with a pressure-sensitive valve represents a massive leap forward in patient safety. It fundamentally transforms how hospitals manage chronic fluid therapies.
In clinical practice, a central venous catheter (CVC) is a highly flexible tube inserted into a large central vein. Typically, this is the internal jugular vein in the neck or the subclavian vein in the chest. The tip of the catheter is carefully advanced until it rests just above the right atrium of the heart. Here, blood flow is incredibly rapid and voluminous.
The term "tunneled" refers to the specific surgical insertion method. Instead of entering the vein directly at the skin puncture site, the catheter is routed—or tunneled—under the patient's skin for several inches. This subcutaneous tract serves a vital protective purpose. It creates a physical barrier, making it exceedingly difficult for surface bacteria to migrate down the tract and enter the bloodstream.
Furthermore, tunneled catheters feature a small antimicrobial cuff, typically made of porous Dacron, located inside this tunnel. Over three to four weeks, the patient's tissue naturally grows into this cuff. This biological ingrowth firmly secures the catheter in place. It prevents accidental dislodgement while acting as a secondary mechanical seal against bacterial intrusion.
What truly sets this specific vascular access device apart is the pressure-sensitive valve. This component is often located at the distal tip (floating inside the bloodstream) or integrated into the proximal hub outside the body. Traditional open-ended catheters are essentially hollow pipes. They require external physical clamps to stop blood from flowing out. In contrast, the valved catheter manages fluid direction automatically.
The valve features a highly calibrated slit within a silicone or polyurethane membrane. It responds dynamically to environmental pressure changes, operating seamlessly in three distinct states:
Valve State | Pressure Condition | Mechanical Action | Clinical Function |
|---|---|---|---|
Positive Pressure | High (Syringe or IV Pump) | Valve flexes and opens outward. | Allows medications and fluids to enter the bloodstream. |
Negative Pressure | Low (Syringe Pull) | Valve flexes and opens inward. | Allows clinicians to withdraw blood for laboratory testing. |
Neutral Pressure | Normal Venous Pressure | Valve remains completely closed. | Prevents blood from backing up into the catheter lumen. |
Because the internal mechanism remains closed at resting venous pressure, blood does not enter the catheter lumen when inactive. In practical terms, this eliminates the risk of internal clotting. Consequently, it completely removes the need for heparin—a high-risk blood thinner traditionally injected into open-ended catheters to maintain patency.
Whether engineers design infrastructure for a sprawling municipality or life-saving medical devices for an ICU, the fundamental laws of physics remain unchanged. Fluid dynamics, pressure differentials, and material resistance strictly govern how any flow-control mechanism is constructed.

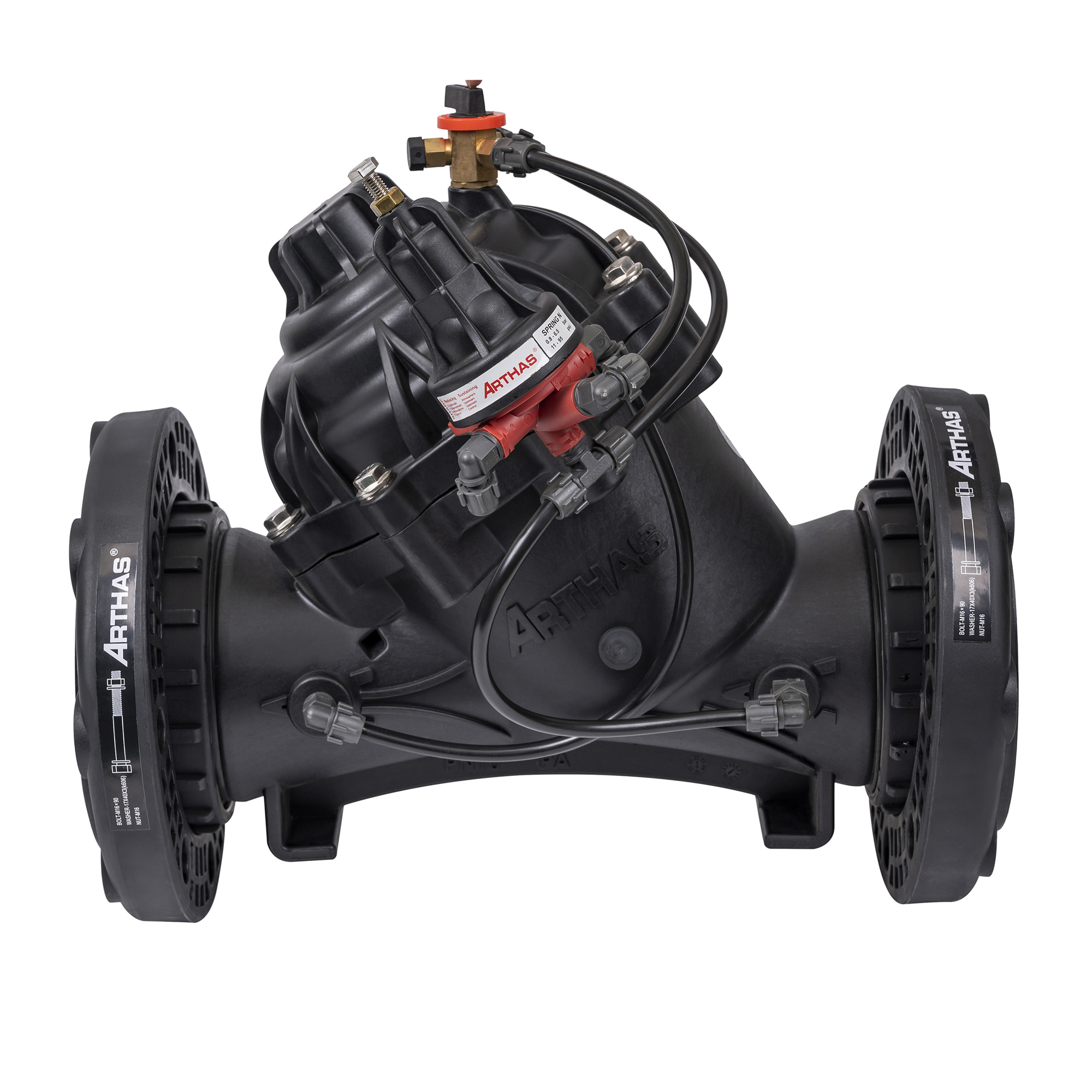

To grasp the sheer complexity of a medical micro-valve, it helps to look at macro-scale engineering. Industrial fluid systems rely on heavy-duty, meticulously calibrated components to manage flow rates and prevent hazardous backwash. For instance, when we design a hydraulic water valve for agricultural use, we focus on handling massive flow volumes and high-stress environments. Equipment like the AS110PR Arthas 4" Pressure Reducing Valve from ARKA is engineered to reliably regulate pressures between 0.6 to 6 bar.
The medical pressure-sensitive valve performs the exact same mechanical function, but on a microscopic scale. Instead of regulating hundreds of gallons per minute at high bar pressures, it regulates mere milliliters per hour. The engineering tolerances required to manufacture a functioning valve that fits inside a 2-millimeter tube are nothing short of extraordinary.
Valve design cannot be finalized without a deep understanding of the target fluid. Viscosity—a fluid's internal resistance to flow—plays a major role in how the valve's membrane is calibrated during manufacturing.
In clinical settings, a catheter handles a surprisingly wide variety of fluids. Normal saline is thin, featuring a viscosity similar to pure water. It flows easily through the valve with minimal applied pressure. Human blood, however, is a non-Newtonian fluid. It is thick, packed with cellular structures, and highly viscous. Total Parenteral Nutrition (TPN) is even more challenging. This intravenous feeding solution is dense, sticky, and rich in lipids and proteins.
Therefore, the pressure-sensitive valve must strike a delicate structural balance. It needs to be flexible enough to allow thick fluids to pass through without causing the catheter walls to collapse under negative pressure. Simultaneously, it must be rigid enough to snap definitively shut the moment fluid transfer is complete. If the material is too stiff, nurses will struggle to push medications. If it is too weak, the natural hydrostatic pressure of the circulatory system could force it open.
At its core, the catheter tip acts as a highly sensitive flow regulator. The central venous pressure (CVP) in a healthy human resting in a supine position typically hovers between 2 and 8 mmHg. The micro-valve is engineered to remain absolutely sealed within this specific physiological range.
However, the environment changes rapidly during interventions. When a clinician pushes a rapid bolus of medication, localized pressure can spike dramatically, sometimes exceeding 100 mmHg. The valve must instantly yield to this positive pressure. Conversely, pulling back on a syringe creates a negative pressure vacuum, forcing the valve to reverse its orientation and open inward.
This precise, bi-directional responsiveness mimics the mechanics utilized in industrial water pressure regulation. In large-scale systems, a flexible diaphragm responds to sudden shifts in upstream or downstream pressure to maintain a steady flow rate. Inside the human body, the silicone membrane of the catheter valve performs the exact same regulatory task.
Medical professionals and procurement engineers must carefully choose the appropriate vascular access device. Understanding the nuanced differences between tunneled and non-tunneled catheters is crucial for optimizing clinical outcomes and managing institutional costs.
Non-tunneled catheters are essentially direct, open pipes leading straight to the heart. They are typically utilized in emergency departments or intensive care units. Inserted directly into the vein through the skin at the neck or groin, they are strictly designed for short-term use (a few days to a couple of weeks).
Because they lack a protective subcutaneous tunnel, the risk of bacterial migration increases exponentially over time. Furthermore, to prevent fatal air bubbles or blood loss, external plastic clamps must be manually engaged. Clinicians must also flush the line with a heparin solution every single day to prevent clotting.
In stark contrast, a tunneled central venous catheter with a pressure-sensitive valve is a definitive long-term solution. Thanks to the protective skin tunnel and the tissue-integrating cuff, these devices can remain safely implanted for months or years. They are the gold standard for patients requiring chronic treatments.
The internal valve elegantly eliminates severe risks. Because it remains closed by default, there is no need for external clamps. This significantly reduces the risk of catastrophic human error. Additionally, heparin is rendered entirely unnecessary, eliminating the risk of Heparin-Induced Thrombocytopenia (HIT).
The unique fluid dynamics and unparalleled safety profile of these valves make them the preferred choice for several high-stakes medical treatments.
Chemotherapy drugs are notoriously toxic. Standard peripheral IVs placed in the arm are completely unsuitable for long-term chemotherapy due to the rapid degradation of small veins. The valved tunneled catheter bypasses this issue by delivering these harsh chemical agents directly into the superior vena cava. The massive volume of central blood instantly dilutes the chemicals. The closed-valve system ensures oncology patients can safely receive intermittent cycles over many months.
Patients suffering from end-stage renal disease require hemodialysis. This life-sustaining process requires exceptionally high fluid flow rates, often demanding between 300 and 400 milliliters per minute. Catheters utilized for dialysis must feature incredibly robust pressure regulation capabilities. The massive, fluctuating pressure differentials generated by the dialysis machine demand structural integrity similar to a heavy-duty diaphragm valve to ensure the catheter walls do not collapse inward.
Patients who physically cannot absorb nutrients through their digestive tract rely entirely on Total Parenteral Nutrition (TPN). Because TPN is exceptionally rich in glucose and lipids, it is a prime target for bacterial colonization. The tunneled design provides the necessary biological barrier against skin flora. Most importantly, the valve prevents blood from backing up and mixing with the dense TPN, which could easily occlude the line during a lengthy 24-hour infusion.
The seamless intersection of material science and biomedical engineering makes these advanced catheters possible. The materials selected must be highly biocompatible, incredibly durable, and capable of maintaining precise mechanical properties.
Historically, medical-grade silicone has been the gold standard for valved catheters. Silicone is inherently soft and highly flexible. This flexibility is crucial for the pressure-sensitive valve, which relies entirely on elastomeric memory to return to a tightly closed neutral position.
Recently, modern manufacturing has increasingly turned to advanced polyurethane blends. Polyurethane offers a significantly higher tensile strength than silicone. This allows engineers to design catheters with thinner outer walls while maintaining a larger internal lumen diameter, directly facilitating higher flow rates. Furthermore, polyurethane is distinctly thermosensitive; it softens dramatically upon exposure to body temperature, conforming naturally to vascular anatomy.
The pressure-sensitive valve must be calibrated with absolute precision. Manufacturers subject these micro-valves to rigorous mechanical fatigue testing. Engineers calculate the exact "cracking pressure"—the precise minimum amount of force required to force the valve open.
This testing process is remarkably similar to industrial stress-testing. Just as a heavy-duty pressure control valve must endure thousands of cycles without material fatigue to prevent pipeline failure, the medical valve must survive tens of thousands of syringe plunges without the silicone tearing or losing its critical resting seal.
Even the most technologically advanced medical device requires strict adherence to maintenance protocols. Proper physical care remains dictated by the laws of fluid dynamics.
Because the valve remains securely closed at resting venous pressure, blood does not enter the lumen. This mandates a saline-only flush protocol. However, the physical technique used to deliver this saline is critical.
Clinicians employ a specific "push-pause" flushing technique. From a fluid dynamics perspective, a steady, continuous push creates laminar flow, where fluid moves in smooth, parallel layers. Laminar flow is highly inefficient at clearing sticky debris. The push-pause technique intentionally generates turbulent flow. This turbulence creates localized shear stress against the inner walls of the catheter and the valve membrane, effectively scrubbing away residual lipid deposits or early fibrin buildup.
Despite meticulous care, occlusions can occur. Mechanical occlusions are physical obstructions, such as a sharp kink in the external tubing. Thrombotic occlusions occur when a biological fibrin sheath forms over the valve. When addressing thrombotic blockages, healthcare providers often rely on thrombolytic agents (like tPA) to chemically dissolve the clot and restore the baseline mechanics of the device.
The intersection of biomedical engineering and fluid dynamics continues to evolve. We are currently observing a massive paradigm shift in the broader medical device industry, heavily driven by the need to support home-based healthcare.
Recent industry analysis highlights a surging demand for outpatient and home-based infusion therapies. Patients are increasingly receiving complex treatments from the comfort of their living rooms. This transition places a premium on foolproof device design. Because clinical professionals are not always present, catheters must be incredibly forgiving of minor user errors. The automatic shut-off mechanism of the pressure-sensitive valve provides a critical safety net, driving manufacturers to heavily invest in refining valve responsiveness.
Looking toward the horizon, the integration of nanotechnology is promising. Future valved catheters will likely feature biomimetic surfaces engineered to mimic the natural endothelial lining of human blood vessels. By rendering the surface highly hydrophilic, circulating platelets will be physically unable to adhere to the device.
Furthermore, engineers are exploring "smart" medical valves. Just as a modern automated irrigation valve uses advanced sensors to detect flow anomalies in agricultural fields, next-generation medical devices may soon incorporate micro-sensors. These sensors could detect minute changes in fluid pressure or early fibrin buildup, alerting clinicians via Bluetooth to an impending occlusion days before it blocks the line.
The tunneled central venous catheter with a pressure-sensitive valve stands as a marvel of modern medical engineering. By integrating a highly calibrated micro-valve, this device elegantly eliminates the need for routine heparin flushes and external clamps.
Its precise design prevents dangerous blood backflow effectively, relying entirely on the universal laws of fluid dynamics. Whether regulating massive volumes of water in an agricultural grid or life-saving medication in a patient's vein, the foundational principles of flow control remain identical. Proper clinical maintenance, particularly the turbulent saline flush, guarantees reliable performance over the long term.
For robust fluid control solutions, whether you are analyzing micro-medical applications or designing macro-agricultural systems, precision engineering is non-negotiable. Explore advanced flow control technologies and find the exact valve specifications for your heavy-duty applications at ARKA Irrigation.
The primary clinical advantage is the built-in valve mechanism that actively prevents blood from backing up into the catheter lumen. Standard open-ended catheters require daily maintenance, specifically the instillation of heparin, to prevent clots. Because a pressure-sensitive valve remains firmly closed at normal resting venous pressure, blood never enters the device. This eliminates the need for routine heparin flushes, lowers the risk of bleeding complications, and significantly simplifies daily at-home patient care.
The valve operates entirely on the foundational principles of fluid dynamics and pressure differentials; it contains no electronic sensors. The elastomeric membrane is engineered with a highly specific cracking pressure. When a clinician pushes fluid in, the positive hydrostatic pressure forces the valve outward. Conversely, when a syringe is pulled back, the negative vacuum pressure forces the valve inward. At rest, the natural elasticity of the material forces the slit tightly shut against normal venous blood pressure.
The ability to withstand high-pressure injections depends entirely on the specific brand and material specifications. Many modern polyurethane valved catheters are engineered to be "power-injectable," safely handling the rapid, high-pressure injection of contrast media (often reaching up to 300 PSI). However, older silicone models may rupture under such immense pressure. Clinicians must always verify the manufacturer's guidelines before proceeding.
Unlike non-tunneled catheters, which can be pulled out at the bedside, removing a tunneled catheter requires a minor surgical procedure. Over a few weeks post-insertion, the patient's natural tissue grows deep into the subcutaneous Dacron cuff, acting as a biological anchor. To remove the device, a healthcare professional must use local anesthesia, make a small incision to dissect the tissue away from the cuff, and gently withdraw the catheter.
Heparin is an anticoagulant utilized to stop blood from coagulating when it pools inside a plastic medical tube. In a standard catheter, the open tip allows blood to freely mix with the IV fluid inside the lumen. Because the pressure-sensitive valve remains tightly closed at rest, it acts as an impenetrable barrier. Blood washes over the smooth exterior but never enters the internal tube. Since there is no blood inside to clot, a forceful flush of sterile saline is entirely sufficient to clear the line.
When properly maintained using strict sterile protocols and regular turbulent saline flushes, a tunneled valved catheter can safely remain in place for several months to several years. The biological ingrowth at the Dacron cuff provides long-term stability and infection resistance, making it ideal for chronic conditions like prolonged chemotherapy or lifelong parenteral nutrition.
Signs of valve failure typically manifest as changes in fluid dynamics. If a nurse experiences abnormal resistance when pushing a saline flush, or if it becomes impossible to aspirate a blood return, the valve may be compromised by a fibrin sheath. Additionally, if blood is visibly observed backing up into the external catheter tubing while at rest, the elastomeric memory of the valve has likely failed, allowing the resting venous pressure to overcome the seal.
