You are standing on the shop floor. A multi-axis robotic arm suddenly shudders mid-operation. Or perhaps an aerospace test rig fails to hold a critical load during a stress test. Are erratic machine movements and unpredictable jitter ruining your production precision? In high-stakes industrial environments, motion control instability in hydraulic systems is more than just a maintenance nuisance. It is the leading cause of costly unplanned downtime, scrapped materials, and blown production schedules.
Recent industry data reveals a definitive shift in how engineers manage fluid power reliability. We are moving away from reactive firefighting. As automation tolerances tighten across sectors like plastic injection molding, metallurgy, and heavy manufacturing, the margin for error has practically vanished. Current engineering trends emphasize predictive maintenance and IoT-enabled condition monitoring. Modern technicians now rely on real-time fluid analysis and micro-fluctuation tracking to catch anomalies long before they cascade into a complete system failure. Mitigating unstable valve response requires a proactive, deep understanding of both fluid dynamics and electrical feedback loops.
Here is what you need to know from the field. By unpacking the mechanical, electrical, and systemic triggers, you will learn actionable troubleshooting methods to restore absolute precision to your fluid power circuits.
Key Takeaways from the Field:
Contamination is the Primary Culprit: Microscopic debris suspended in hydraulic fluid remains the most frequent cause of servo valve stiction. This leads directly to delayed or violently unstable response times.
Electrical vs. Mechanical Diagnostics: Instability can originate from physical wear, such as spool edge degradation. Alternatively, it can stem from signal interference, including faulty PID tuning and electromagnetic noise.
Systemic Pressure Issues: Pressure fluctuations caused by malfunctioning upstream components instantly degrade downstream precision and repeatability.
Proactive Maintenance is Mandatory: Routine fluid analysis, strict adherence to ISO cleanliness codes, and periodic factory calibration prevent catastrophic failures.
Fundamentally, a hydraulic servo valve is a highly precise directional control device. It acts as the critical translator between a machine's electronic brain and its physical muscle. The valve converts low-power electrical command signals—typically measured in milliamps or volts—into proportional, high-power hydraulic flow. Internally, this component relies on a delicate assembly: a torque motor, a flapper-nozzle amplifier (or jet pipe), and a main sliding spool. When current energizes the torque motor, it shifts the flapper. This creates a pressure differential that moves the spool with microscopic accuracy, directing fluid to the actuator.
Internal feedback is what sets this component apart. Whether mechanical or electrical, this feedback allows the valve to continuously monitor and correct the spool's actual position against the commanded position. Standard directional valves operate on a rudimentary open-loop basis. They simply shift a spool to a hard stop to allow maximum flow. If you compare a highly tuned servo system to a standard hydraulic control valve, the difference lies entirely in fidelity and response time. Servo units exhibit near-zero deadband and extremely low hysteresis. This enables continuous, infinite flow adjustments rather than bulk fluid transfer.
Industrial applications operate under unforgiving tolerances. A fraction of a millimeter of deviation in a CNC machining center yields a defective batch of parts. These environments demand absolute, unwavering stability. To illustrate the operational differences, consider the following technical comparison:
Valve Type | Response Time | Hysteresis | Contamination Tolerance | Primary Application |
|---|---|---|---|---|
Standard Directional | 50 - 100 ms | High (Open Loop) | High (ISO 18/16/13) | Basic bulk fluid transfer |
Proportional Valve | 20 - 40 ms | Moderate (3-5%) | Medium (ISO 16/14/11) | Speed/force control |
Servo Valve | < 10 ms | Near Zero (< 1%) | Very Low (ISO 14/11/08) | High-precision motion control |
Instability rarely occurs without physical warning signs. The most prominent symptom is actuator oscillation, universally referred to by technicians as "hunting." You might observe a heavy press cylinder continuously overshooting and undershooting its target coordinate. This creates a visible, destructive vibration. Sluggish response time is another major red flag. In this scenario, the actuator exhibits a noticeable delay between the controller's command and the actual physical movement. Furthermore, operators frequently report erratic positioning, where a machine fails to hold a commanded load steady. It slowly drifts away from its null point despite a constant electrical signal.
While physical symptoms indicate a problem, diagnostic data pinpoints the root cause. Maintenance engineers utilize oscilloscopes and machine control software to visualize the feedback loop. By plotting the command signal against the actual position feedback—usually provided by a linear encoder or LVDT—you can easily spot phase lag. If the command signal is a smooth, continuous sine wave but the feedback signal is jagged, delayed, or spiked, you have a severe discrepancy. Consistently high error signals in the PID data log almost always point toward mechanical stiction or electrical interference.
Empirical data consistently proves that fluid contamination is responsible for the vast majority of premature failures. These valves operate with incredibly tight internal clearances. Spool-to-sleeve gaps are often machined to just 2 to 4 microns. Therefore, even microscopic particulate matter causes severe disruption. Dirt, metal shavings, or sticky varnish byproducts lodge between the spool and the sleeve. This accumulation creates "stiction." The controller must send a significantly higher electrical current just to break the spool free. Once it finally moves, the built-up energy causes the spool to violently overshoot its intended position.
In addition to contamination, spool wear and internal leakage degrade performance over time. Over millions of operating cycles, the continuous high-velocity flow of fluid gradually erodes the internal components. The metering edges of the valve spool are machined to razor-sharp angles to control fluid flow proportionally. As these critical edges become rounded due to fluid friction, the valve loses its ability to shut off flow completely at the center position. Consequently, the controller attempts to compensate for the lost pressure by sending stronger signals. This traps the system in a continuous cycle of micro-oscillations.
Furthermore, internal pressure dynamics rely heavily on the integrity of elastomeric seals. Subjected to dynamic pressure spikes and extreme fluid temperatures, O-rings eventually harden, crack, or extrude. A compromised seal allows high-pressure fluid to bleed into return lines or cross over into opposing control ports. This unintended pressure equalization forces the control system to constantly fight against the internal leak to maintain stability.
Many high-response proportional and servo units incorporate a Linear Variable Differential Transformer (LVDT) to monitor the exact physical location of the main spool. If the delicate internal wiring of the LVDT degrades, or if the magnetic core becomes misaligned due to heavy machine vibration, it transmits false position data. Trusting this inaccurate feedback, the controller attempts to correct a positional error that does not actually exist. This phantom error correction induces severe, high-frequency hunting at the hydraulic cylinder.
Specifically, the stability of a closed-loop system is mathematically governed by the Proportional-Integral-Derivative (PID) algorithm. Improperly calibrated PID gains are a frequent, non-hardware cause of erratic behavior. If the Proportional (P) gain is set too aggressively, the system overreacts to minor positional errors. Conversely, excessive Integral (I) gain leads to "integral windup." This results in a sluggish initial response followed by a massive, unstable surge in actuator movement. Proper tuning is absolutely essential to match the electrical command with the physical limitations of the fluid system.
Electromagnetic Interference (EMI) is another silent disruptor. These valves are controlled by highly sensitive, low-voltage signals—typically +/- 10V or 4-20mA. If the signal cables running from the main PLC are unshielded or routed too closely to Variable Frequency Drives (VFDs), they act as antennas. They pick up ambient electrical noise which distorts the clean command signal. The valve attempts to faithfully respond to this noisy signal, resulting in unpredictable spool jitter.
A precision valve does not operate in a vacuum. It relies entirely on the stability of the broader hydraulic circuit. The mathematical calculations that determine precise fluid metering assume a steady, unwavering pressure drop across the valve. If an upstream pressure reducing valve is sticking or improperly adjusted, the supply pressure will fluctuate wildly. When supply pressure drops unexpectedly, the output flow decreases, causing the actuator to lag. When the pressure suddenly spikes back up, the system receives a massive surge of fluid.

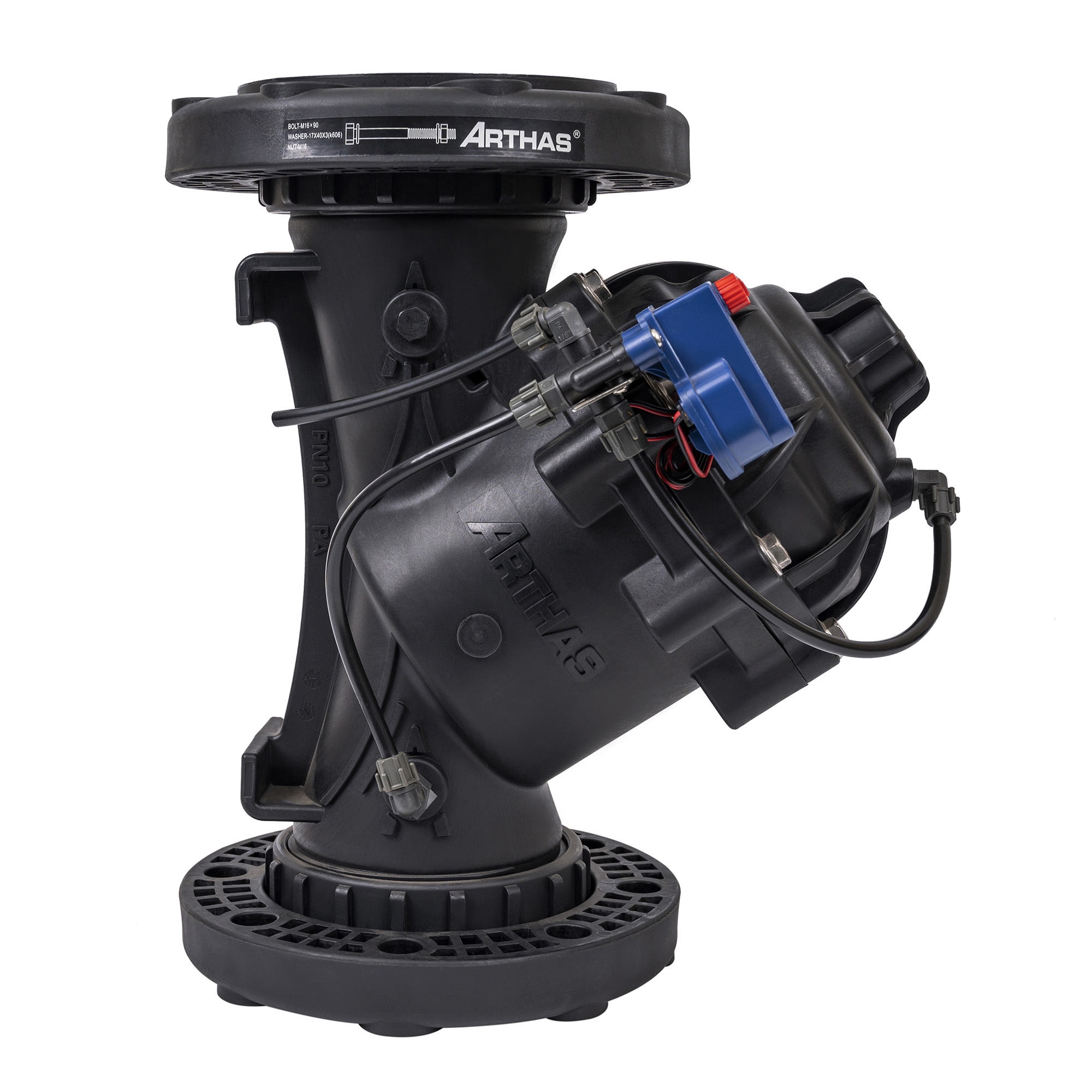

To prevent this, industrial and heavy-duty fluid circuits require robust upstream regulation. For instance, utilizing advanced regulation architecture—similar to the design principles found in the Arka AS110PR Arthas 4-inch Pressure Reducing Valve—ensures systemic stability. While often utilized as a high-capacity irrigation valve, its core engineering features a nylon-reinforced diaphragm and precise pilot-operated regulation. Integrating valves with this level of robust pressure management ensures that downstream sensitive components receive a rock-steady supply, regardless of upstream flow variations.
Interactions with secondary components also play a critical role. If a secondary flow control valve is set too restrictively, it can inadvertently starve the main circuit of the fluid volume required during high-demand transient movements. This fluid starvation creates a severe pressure drop at the inlet. The resulting phase lag between the electrical command and the physical execution forces the control loop to oscillate wildly.
Finally, trapped air in the hydraulic lines destroys stiffness. Hydraulic systems excel in precision specifically because fluid is fundamentally incompressible. However, if air is introduced—through pump cavitation or low reservoir levels—the fluid column becomes compressible. Air bubbles act like mechanical springs. When the valve opens, the initial fluid energy is wasted compressing the trapped air rather than moving the heavy load. This spongy dynamic destroys instantaneous control.
When diagnosing motion control instability, your first objective is to isolate the root cause. You must determine whether the instability originates from the electronic control system or the physical hydraulic circuit. Technicians typically perform an open-loop test. Disconnect the main controller and apply a known, steady electrical signal directly to the valve using a specialized test box. If the actuator moves smoothly and holds position, the issue likely resides in the PLC, PID tuning, or EMI. If the jitter persists despite a clean signal, the fault is undeniably mechanical or fluid-related.
Next, check fluid health and pressure levels. Never assume hydraulic fluid is clean simply because it looks clear to the naked eye. Install calibrated digital pressure gauges immediately upstream of the valve and monitor them under load. The supply pressure must remain rock-steady. Extract a fluid sample and perform a laser particle count. If the fluid fails to meet strict cleanliness standards, contamination is highly probable.
Using a digital oscilloscope, inspect the electrical connections at the valve plug in real-time. Look for jagged waveforms that indicate EMI. Ensure all cable shielding is properly grounded at a single point to prevent ground loops. Additionally, check the mechanical null bias. If the pump is running but the valve receives a true zero-volt command, the actuator should remain perfectly stationary. If it slowly drifts, the mechanical null adjustment screw requires recalibration.
The single most effective preventive measure for maintaining stable motion control is enforcing rigorous fluid cleanliness. Servo systems simply cannot tolerate the moderate contamination levels acceptable in standard gear pump circuits. Cleanliness is measured using the ISO 4406 standard. High-response components require a minimum cleanliness level of ISO 14/11/08 or stricter. Achieving this requires investing in high-efficiency, micro-glass pressure filters (1-3 micron absolute) placed directly upstream, supplemented by dedicated offline kidney-loop filtration.
When replacing or upgrading valves, abstract specifications must be translated into actionable selection criteria. Do not apply standard water pressure control mentalities to high-stakes hydraulic motion. Look for valves that feature robust internal feedback mechanisms, high-tolerance spools, and hardened metering edges. Ensure the machine's heat exchanger maintains a consistent oil temperature (optimally between 110°F and 130°F) to prevent viscosity fluctuations.
When a valve is confirmed faulty, maintenance teams face a critical decision: attempt an on-site repair, send it out for refurbishment, or purchase a complete replacement. Minor issues, such as slight null drift, can be corrected on the shop floor. However, if diagnostic tests reveal eroded spool edges, the valve requires precision match-grinding in a cleanroom environment. In cases of severe internal wear, replacing the unit entirely is often much more cost-effective than enduring prolonged machine downtime.
The bottom line is that treating the underlying issue is always more profitable than constantly fighting erratic machine behavior. Implementing proactive maintenance, upgrading your filtration, and utilizing robust upstream pressure regulation restores the extreme precision your production line demands. If your facility is struggling with persistent fluid power instability, it is time to evaluate your hardware. Upgrading to premium, precision-engineered control valves will stabilize your circuits and get your motion control back on track. For robust, high-capacity fluid control solutions and technical specifications that meet demanding industry standards, explore the product line at Arka Irrigation.
Fluid contamination is responsible for over 70% of failures. Microscopic particles suspended in the oil lodge between the spool and sleeve. This leads to stiction, erratic motion, and accelerated wear of the critical metering edges.
Oscillation, commonly known as hunting, is usually fixed by re-tuning the PID controller parameters (specifically lowering the Proportional gain). If tuning fails, you must bleed trapped air out of the hydraulic lines or replace a noisy, degraded feedback sensor that is sending false position data to the PLC.
Yes. Precision valves rely on constant, steady supply pressure to meter fluid accurately. If an upstream pressure reducing valve fluctuates or sticks, the downstream component cannot maintain a stable output flow. This causes the actuator to jitter and lose positional accuracy.
Engineers use a dedicated valve test box to perform an open-loop test. By disconnecting the PLC and manually injecting a clean, precise voltage or current signal directly into the valve, you can observe the actuator's movement. If the movement is smooth under manual control, the issue is electrical (PLC, wiring, PID). If it still jitters, the valve or fluid circuit is mechanically compromised.
Unlike standard hydraulic systems that can operate at ISO 18/16/13, high-precision servo systems require extremely clean fluid. The industry standard minimum is ISO 14/11/08. Achieving this requires 1 to 3-micron absolute filtration to protect the microscopic clearances between the spool and sleeve.
While both are types of directional valves, servo units feature internal mechanical or electrical feedback mechanisms. This provides extreme precision, near-zero deadband, and lightning-fast response times (under 10 milliseconds). Proportional valves are generally slower, have wider tolerances, and lack the same level of closed-loop precision.
No. Standard water pressure systems operate on very loose tolerances and utilize entirely different fluid dynamics. Hydraulic precision systems require specialized, incompressible industrial fluids, micro-glass filtration, and exact, low-voltage electrical control to function safely and accurately.
