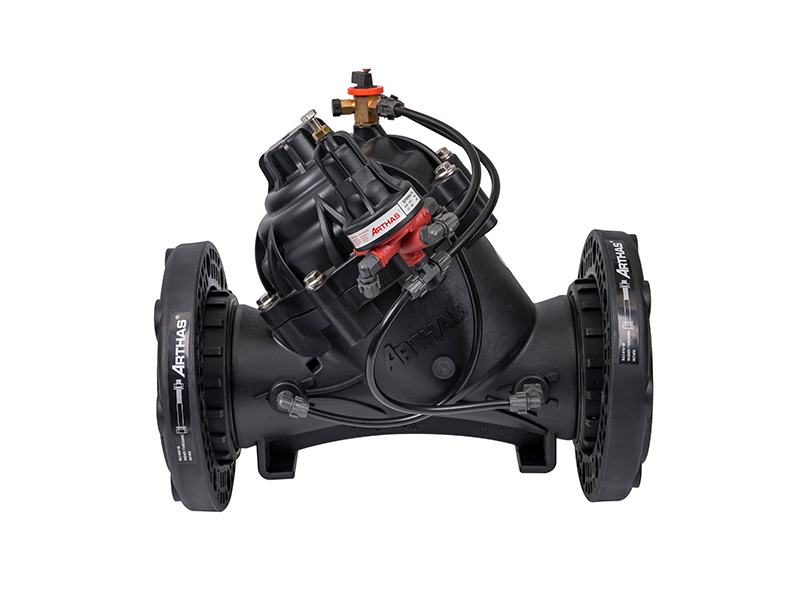

Sizing a control valve correctly requires precise differential pressure data, not just matching the pipe diameter. Relying on pipe size alone ignores actual flow dynamics, a mistake that often leads to system failure, severe cavitation, or erratic flow control. Accurate sizing demands exact pressure metrics to calculate the Flow Coefficient (Cv). Missing or estimated data compromises system efficiency and drastically shortens equipment lifespan. Ignoring dynamic hydraulic losses or vapor pressure limits guarantees poor performance in the field. Engineers and system designers must gather specific pressure data points to specify the right equipment. You need to understand inlet pressure, required outlet pressure, and allowable pressure drop. We will break down exactly which pressure metrics you need to gather and how to apply this data to accurately specify a hydraulic control valve for industrial, municipal, or agricultural applications.
Pressure Drop ($\Delta$P) is the Deciding Metric: The differential between inlet ($P_1$) and outlet ($P_2$) pressure dictates the valve's required flow capacity ($C_v$).
Static vs. Dynamic Pressure: Accurate sizing requires calculating dynamic hydraulic losses, including elevation changes, pipe friction, fittings, and diameter transitions.
Application Dictates Constraints: Specialized applications require distinct pressure baselines (e.g., minimum operating pressure for an irrigation solenoid valve vs. dynamic shifts in a filter backwash valve).
The Critical Margin from Calculated to Rated $C_v$: Calculating $C_v$ is only the first step; designers must map this to a valve's rated $C_v$, ensuring normal operation falls within the optimal 30% to 70% open range.
The Danger of Oversizing: Selecting a valve with too large a rated $C_v$ based on flawed pressure data results in "hunting," poor control resolution, and accelerated wear.
Inlet pressure ($P_1$) represents the absolute static plus dynamic pressure immediately upstream of the valve. You must measure this value under normal operating flow conditions. Static pressure alone is insufficient because when fluid moves, friction reduces the available pressure. You must record the minimum, normal, and maximum inlet pressures. Source fluctuations happen constantly in real-world applications. Pump outputs vary based on impeller wear or variable frequency drive (VFD) settings. Reservoir levels drop during peak demand, reducing static head. Municipal supply lines experience severe pressure swings throughout the day. Designing a system based on a single static pressure reading guarantees failure. The valve must handle the highest potential pressure without suffering mechanical damage. It must also pass the required flow during the lowest pressure scenarios. Accurate $P_1$ data establishes the baseline for every subsequent calculation.
Consider a field scenario where a main pump station feeds a network. At night, demand is low, and the pump might dead-head near 120 psi. During peak afternoon watering, the dynamic pressure might drop to 65 psi. If you size the valve assuming a constant 100 psi, it will be severely undersized for the afternoon flow and oversized for the night flow. You must map out the entire pressure envelope. Documenting these variations allows you to select a valve trim that maintains stability across the entire spectrum of source conditions.
Outlet pressure ($P_2$) is the required pressure immediately downstream of the valve. This metric ensures process operations continue without interruption. Destination pressure requirements dictate the allowable pressure drop across the valve. You must calculate the exact pressure needed by downstream equipment. Sprinkler heads, drip emitters, and industrial nozzles require specific operating pressures to function. Downstream elevation changes also impact $P_2$. Pumping water uphill requires higher outlet pressure to overcome gravity. Downstream piping friction adds backpressure to the system. You must account for all downstream resistance when defining $P_2$. If the calculated $P_2$ is too low, the system starves. If $P_2$ is too high, you risk blowing out fittings or damaging sensitive equipment. Precise $P_2$ data ensures the valve delivers the exact energy required for the process.
For example, if a drip tape zone requires exactly 15 psi to emit the correct gallons per hour, and there is 5 psi of friction loss between the valve and the furthest emitter, your $P_2$ at the valve must be 20 psi. You cannot guess this number. You must trace the piping path, calculate the friction through every elbow and tee, and add the elevation gain. A miscalculated $P_2$ directly translates to uneven water distribution, dry spots in a field, or inadequate cooling in an industrial process.
Allowable pressure drop ($\Delta$P) is the mathematical difference between inlet and outlet pressure. You calculate it using a strict formula: Allowable $\Delta$P = Source Pressure - Destination Pressure - System Hydraulic Losses. This metric defines the energy the valve must dissipate to control flow. Sizing based on arbitrary rules of thumb often fails. The historical 100 psi standard for cartridge valves does not apply to custom or high-flow systems. Every system features unique hydraulic characteristics. Assuming a standard pressure drop leads to severely oversized or undersized valves. Oversized valves operate too close to the closed position. This causes erratic flow control and rapid seat wear. Undersized valves create excessive pressure drop, starving the system. You must calculate the exact allowable $\Delta$P for your specific application.
Sizing Error | Common Cause | System Consequence |
|---|---|---|
Using Static Pressure Only | Ignoring dynamic friction losses during flow. | Undersized valve fails to deliver required flow rate. |
Assuming Standard $\Delta$P | Relying on historical rules of thumb (e.g., 100 psi). | Valve operates outside optimal 30-70% open range. |
Ignoring Source Fluctuations | Designing for average pressure instead of min/max extremes. | System starvation during low pressure; damage during surges. |
Overlooking Backpressure | Failing to calculate downstream elevation or nozzle resistance. | Insufficient outlet pressure ($P_2$) to operate equipment. |
Shut-off pressure is the maximum differential pressure across the valve when fully closed. This metric dictates the mechanical strength required for the valve internals. When the valve closes, flow stops, and dynamic friction disappears. The upstream pressure rises to the maximum static source pressure. The downstream pressure often drops to zero. This creates a massive differential across the valve seat. You must use this maximum shut-off pressure to select the correct actuator size. The actuator must generate enough force to keep the valve closed against this pressure. Shut-off pressure also dictates torque and thrust requirements for the stem. High shut-off pressures require specialized internal trim and seat materials. Standard elastomers may deform or extrude under extreme pressure. Accurate shut-off data prevents internal leakage and catastrophic mechanical failure.
If a valve is installed at the bottom of a steep hill, the static head pressure when the system is off can be immense. A 200-foot elevation drop creates nearly 86 psi of static pressure resting directly on the closed valve seat, in addition to any residual pump pressure. If the valve's spring or diaphragm is not rated for this shut-off pressure, water will leak past the seal, draining the mainline and causing water hammer when the system restarts.
Pressure data holds no value without corresponding fluid temperature data. Temperature directly alters the physical properties of the fluid. As temperature increases, the fluid's vapor pressure ($P_v$) also increases. Vapor pressure dictates the physical limits of pressure drop before cavitation occurs. If the localized pressure inside the valve drops below the fluid's vapor pressure, the liquid boils. Vapor bubbles form rapidly in the fluid stream. As the fluid recovers pressure downstream, these bubbles collapse. This collapse generates intense shockwaves that destroy valve internals. You cannot evaluate pressure drop without knowing the vapor pressure at the operating temperature. Hotter fluids require lower pressure drops to prevent cavitation. You must cross-reference your pressure data with the fluid's specific temperature profile.
In agricultural settings, water sitting in black poly pipes under the summer sun can reach temperatures exceeding 110°F. At this temperature, the vapor pressure is significantly higher than cold groundwater. A pressure drop that is perfectly safe for 50°F water might cause severe cavitation in 110°F water. You must always design for the highest expected fluid temperature to ensure the valve survives the worst-case scenario.
Maximal flow speed interacts directly with $\Delta$P to determine required valve capacity. You measure flow rate in gallons per minute (GPM) or liters per minute (L/min). The flow coefficient ($C_v$) represents the volume of water at 60°F that flows through a valve in one minute with a 1 psi pressure drop. The basic liquid flow equation is $C_v = Q \times \sqrt{\frac{SG}{\Delta P}}$. Here, $Q$ represents the flow rate, $SG$ is the specific gravity of the fluid, and $\Delta P$ is the pressure drop. This equation proves that higher flow rates require larger $C_v$ values. Conversely, a higher allowable pressure drop reduces the required $C_v$. You must balance these two variables. If you require massive flow but have very little allowable pressure drop, you need a massive valve. Understanding this mathematical relationship is mandatory for correct sizing.
Let us walk through a practical calculation. Assume you need to move 500 GPM of clean water (SG = 1.0). Your measured inlet pressure is 80 psi, and your required outlet pressure is 60 psi. The allowable pressure drop is 20 psi. Plugging this into the formula: $C_v = 500 \times \sqrt{\frac{1.0}{20}}$. The square root of 0.05 is roughly 0.223. Multiply 500 by 0.223, and you get a required $C_v$ of 111.8. This is your baseline mathematical requirement. If your pressure drop was only 5 psi, the required $C_v$ would jump to 223.6, requiring a much larger valve body.
Available pressure does not equal actual pressure at the valve. You must subtract system hydraulic losses to find the true dynamic $\Delta$P. Fluid rubbing against pipe walls creates friction loss. This loss increases with pipe length and fluid velocity. Pipe material also matters; rough steel creates more friction than smooth PVC. Pipe diameter changes cause turbulence and pressure loss. Every expansion, contraction, elbow, and tee consumes energy. Elevation changes drastically alter available pressure. Pumping fluid up a 100-foot incline consumes roughly 43 psi of static head. You must subtract all these losses from your source pressure. Failing to account for dynamic losses results in an undersized valve. The valve will physically lack the capacity to deliver the required flow at the actual available pressure.
Loss Component | Calculation Method | Impact on Valve Sizing |
|---|---|---|
Pipe Friction | Hazen-Williams or Darcy-Weisbach equation based on length and material. | Reduces available P1; increases required Cv. |
Fittings & Valves | Equivalent pipe length charts for elbows, tees, and isolation valves. | Creates localized pressure drops; lowers overall system energy. |
Elevation Gain | Multiply feet of vertical lift by 0.433 psi. | Directly subtracts from available source pressure. |
Elevation Drop | Multiply feet of vertical drop by 0.433 psi. | Adds to available pressure; may increase cavitation risk. |
Calculating the mathematical $C_v$ is only the first step. You must transition from this raw number to a manufacturer's rated $C_v$. Manufacturers test their valves to determine the maximum flow capacity when 100% open. You should never select a valve where your calculated $C_v$ matches the rated $C_v$. Operating a valve at 100% open leaves no room for control adjustments. The standard rule of thumb dictates a safety margin. Select a valve where your calculated maximum $C_v$ utilizes 80% to 85% of the valve's fully open rated $C_v$. Normal operating conditions should fall between 30% and 70% open. This range ensures optimal valve authority. Valve authority measures how effectively the valve controls the system flow compared to system friction. Proper authority maintains control stability and prevents flow hunting.
Calculate the exact mathematical $C_v$ using your minimum, normal, and maximum flow rates.
Review the manufacturer's flow charts for the specific valve series you intend to use.
Identify a valve size where your normal flow $C_v$ falls near the 50% open mark.
Verify that your maximum flow $C_v$ does not exceed 85% of the valve's rated capacity.
Check that your minimum flow $C_v$ does not drop below 10% open to avoid seat chattering.
Agricultural systems often operate with high mainline pressures to move water over long distances. You must step down this high pressure to safe operating levels for sensitive equipment. Drip lines and micro-sprinklers blow apart if exposed to mainline pressure. Sizing an irrigation pressure reducing valve requires exact $P_1$ and $P_2$ data. The primary challenge is maintaining a steady $P_2$ despite severe fluctuations in $P_1$. Agricultural pumps cycle on and off, creating massive pressure surges. Other irrigation zones opening and closing alter the mainline pressure constantly. The reducing valve must react instantly to these shifts. You must calculate the maximum possible $P_1$ to ensure the valve can handle the drop without cavitating. You must also calculate the minimum $P_1$ to ensure the valve can still pass the required flow to the crops.
When a 100 HP pump kicks on, the initial pressure wave hitting the reducing valve can spike to 150 psi before settling at a running pressure of 90 psi. The valve pilot system must be tuned to absorb this spike without passing it downstream to the 15 psi drip tape. If the valve is oversized, it will overcorrect, slamming shut and then snapping open, creating a destructive oscillation known as hunting. Proper sizing based on accurate pressure data prevents this mechanical chaos.
Solenoid valves rely on specific pressure thresholds to function. Many pilot-operated valves require a minimum pressure differential to open and close reliably. This minimum $\Delta$P typically ranges from 5 to 15 psi. The solenoid simply vents fluid from the upper diaphragm chamber. The line pressure actually does the work of lifting the diaphragm. If the system pressure is too low, the valve will not open. Sizing an irrigation solenoid valve for low-pressure gravity-fed systems requires different logic than high-pressure pumped systems. Gravity systems often lack the minimum $\Delta$P required for standard pilot operation. In these cases, you must specify direct-acting solenoids or specialized low-pressure diaphragms. You must verify the minimum available static pressure before specifying any pilot-operated valve.
Consider a greenhouse fed by a roof-mounted water tank. The tank is only 10 feet above the valve, providing roughly 4.3 psi of static pressure. A standard pilot-operated solenoid valve requiring a 10 psi differential will simply sit there, buzzing, unable to lift its diaphragm. You must measure the exact static head and select a valve specifically engineered for ultra-low pressure applications to ensure reliable automation.
Filtration systems require precise pressure management during cleaning cycles. A filter backwash valve must reverse flow to flush trapped debris. You must analyze the pressure data required for this specific cycle. Backwashing sudden drops downstream resistance to near zero, as the flush line vents to the atmosphere. This creates a massive, instantaneous pressure drop across the valve. You must calculate the pressure required to lift and agitate the media bed. If the pressure is too low, the media remains dirty. If the pressure is too high, you blow the expensive filter media out of the housing and down the drain. The valve must handle high flow rates at very low differential pressures during the flush cycle. Accurate dynamic pressure data prevents media loss and ensures clean filters.
During a backwash cycle, the flow dynamics completely invert. A valve that normally passes 200 GPM with a 2 psi drop might suddenly need to pass 300 GPM with a 15 psi drop to effectively lift a sand media bed. You must size the backwash ports and the exhaust manifold based on these specific, temporary pressure conditions, not the normal filtration conditions.
Pressure relief valves (PRVs) protect systems from catastrophic overpressure events. Sizing a PRV differs entirely from sizing a standard control valve. You must focus on the maximal flow speed the valve must handle during a surge. You must differentiate between cracking pressure and full-flow accumulation pressure. Cracking pressure is the exact setpoint where the valve just begins to open. Full-flow accumulation pressure is the higher pressure required to force the valve 100% open to pass the maximum rated flow. The system pressure will continue to rise above the cracking pressure until the valve fully opens. You must ensure the system piping can handle this accumulation pressure. Additionally, backpressure in the downstream relief line directly affects the valve's setpoint and capacity. You must calculate dynamic backpressure to ensure the PRV opens when required.
If you set a relief valve to crack at 100 psi, it might not reach its full relief capacity of 500 GPM until the system pressure hits 115 psi. If your PVC pipe is only rated for 100 psi, it will shatter before the valve fully opens. You must size the relief valve so that its full-flow accumulation pressure remains below the maximum safe operating pressure of the weakest component in your piping network.
Extreme pressure drops destroy valves. When fluid accelerates through the narrow valve restriction, its pressure drops rapidly. If this pressure falls below the fluid's vapor pressure, vapor bubbles form. This is cavitation. As the fluid slows down and recovers pressure downstream, these bubbles collapse violently. The collapse generates microscopic jets of water that blast the valve internals. This process sounds like gravel flowing through the pipe. It pits metal, destroys seals, and ruins the valve body. You must use your pressure data, the fluid's vapor pressure, and the cavitation index to predict damage. If calculations show a high risk of cavitation, you must alter the system design. You can specify anti-cavitation trim, which breaks the flow into smaller, safer streams. You can use multi-stage pressure reduction, placing two valves in series. Properly evaluating a control valve requires predicting and mitigating these high-pressure drop risks.
Flashing is a related but distinct problem. Flashing occurs when the downstream pressure never recovers above the fluid's vapor pressure. The fluid literally boils as it passes through the valve and remains a mixture of liquid and vapor in the downstream pipe. This high-velocity two-phase flow acts like a sandblaster, eroding the downstream piping. You must calculate the exact downstream pressure recovery to determine if you are facing a cavitation risk or a flashing risk, as the solutions for each are entirely different.
Measure minimum, normal, and maximum inlet pressures directly at the source under dynamic flow conditions.
Calculate all downstream hydraulic losses, including pipe friction and elevation changes, to establish the required outlet pressure.
Apply the flow coefficient formula using your precise pressure drop data to find the mathematical $C_v$.
Select a valve size where your calculated maximum flow utilizes 80% to 85% of the manufacturer's rated capacity.
Evaluate the fluid's vapor pressure against your calculated pressure drop to rule out cavitation risks before finalizing the specification.
A: Sizing by pipe diameter ignores actual flow rates and pressure drops. This usually results in an oversized valve. Oversized valves operate too close to the closed position, causing erratic flow control, pressure surges, and accelerated wear on the valve seat.
A: Minimum inlet pressure represents the worst-case scenario for system energy. If you size a valve based only on maximum pressure, the valve may lack the physical capacity (Cv) to pass the required flow when source pressure drops.
A: Specific gravity measures fluid density compared to water. Heavier fluids require more energy to move. If specific gravity increases, the required Cv increases for the same flow rate and pressure drop. You must account for this when injecting heavy fertilizers.
A: Both occur when internal pressure drops below vapor pressure. In cavitation, the pressure recovers downstream, causing bubbles to collapse and cause damage. In flashing, the downstream pressure remains below vapor pressure, and the fluid remains a vapor-liquid mixture.
A: Pilot-operated solenoid valves use the system's line pressure to lift the internal diaphragm. If the pressure differential between the inlet and outlet is too low, the fluid lacks the force required to open the main valve against the internal spring.
A: Elevation changes directly add or subtract static head from your available pressure. Pumping uphill reduces available pressure, requiring a larger valve Cv. Pumping downhill increases available pressure, which can increase the risk of cavitation if not managed.
