The efficiency of any filtration setup is dictated not just by the filter element, but by the hydraulic integrity of its manifold design. Improper manifold layouts cause uneven pressure distribution across the array. This hydraulic imbalance leads to premature fouling, inadequate backwashing, and increased energy costs due to unnecessary head loss. Plant operators often blame the filter pods for poor performance when the actual culprit is the piping geometry connecting them.
This guide provides a technical framework for evaluating and selecting the optimal manifold layout. You will learn how to ensure operational reliability, minimize physical footprint, and maximize the lifespan of your filtration infrastructure. We will examine fluid dynamics, pipe sizing, and specific layout configurations that determine field success.
Hydraulic Balance is Non-Negotiable: U-shape and Z-shape (reverse return) manifold configurations are critical for maintaining uniform pressure across all filter pods, especially during backwash cycles.
Backwash Velocity Dictates Pipe Sizing: Manifold headers must be sized to accommodate the peak flow required for an automatic disc filtration system to successfully flush particulates without starving adjacent pods.
Footprint vs. Accessibility Trade-offs: Linear layouts save space but can complicate maintenance; parallel or staggered layouts require a larger footprint but offer superior access for disc spine removal.
Material Selection Impacts Longevity: The choice between HDPE, stainless steel, and PVC must align with the specific water chemistry and pressure ratings of the application.
Drain Manifold Hydraulics: An undersized or poorly laid out drain manifold can create backpressure, preventing the disc stack from fully opening and spinning clean during a backwash cycle.

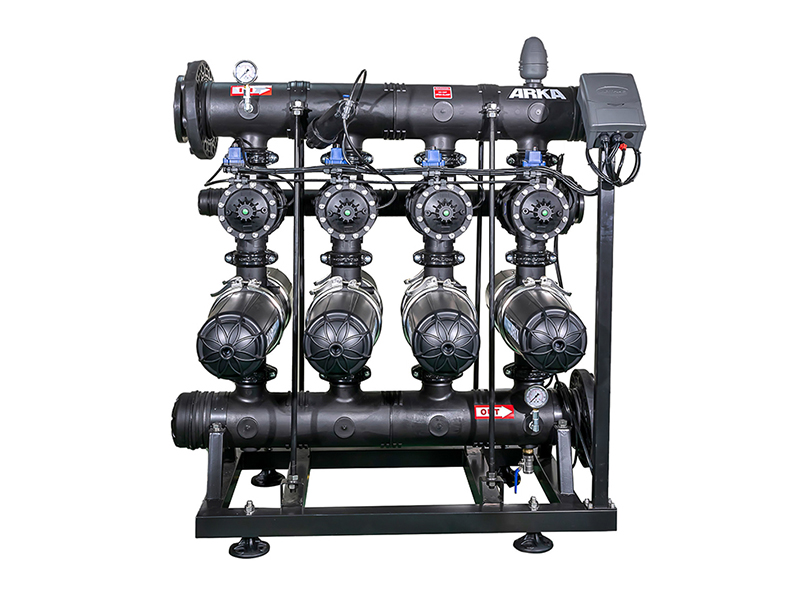

A successful manifold layout achieves three specific criteria. It must deliver equalized flow distribution to every pod in the array. It must maintain minimal pressure drop, known as head loss, across the entire system. Finally, it must guarantee sufficient backwash energy reaches each individual filter element. When you design a Disc Filter System, the piping geometry directly controls these three factors. Without proper geometry, even the highest-quality filter elements will fail to perform to their rated specifications.
An automatic disc filtration system relies entirely on precise manifold pressure to function. During a cleaning cycle, the system reverses flow to decompress the disc stack. The water pressure forces the discs apart and spins them clean. If the manifold fails to deliver adequate pressure to a specific pod, those discs will not separate. This failure results in permanent fouling and requires manual acid washing, which increases downtime and labor requirements.
Engineers must solve the dual-velocity profile challenge. During normal filtration, water moves through the manifold at a slower, distributed velocity. The flow divides evenly among the active pods. However, during a backwash cycle, the system experiences high-velocity localized flow. The manifold must handle this sudden shift in fluid dynamics without creating destructive water hammer or starving the remaining online filters. Proper pipe sizing and layout geometry are the only ways to manage these competing hydraulic demands.
Initial manifold design must account for future capacity expansion. Facilities rarely maintain static flow rates over a ten-year period. Designing the main headers with blind flanges allows operators to add more pods later. Sizing the initial pipes to handle future peak flows prevents a complete system overhaul when production scales up. A well-planned manifold acts as a scalable foundation for the entire water treatment process.
In a linear layout, the inlet and outlet headers run parallel in the exact same direction. The water enters one end of the inlet manifold and exits the same end of the outlet manifold. This structure offers a smaller footprint and simpler piping requirements. It remains highly cost-effective for smaller arrays with low flow rates where pressure drop is negligible.
However, linear layouts carry a high risk of pressure imbalance. The first pod in the sequence receives the highest pressure. The last pod receives the lowest pressure. This unequal distribution causes the first filter to process more water and foul faster. During backwash, the furthest pod often lacks the hydraulic energy required to clean its discs properly, leading to localized failure.
The reverse return layout operates on a balanced hydraulic principle. The first pod supplied by the inlet manifold is the last pod to return water to the outlet manifold. This geometry equalizes the total pipe length for every flow path. Consequently, the pressure drop remains identical for all pods in the array, regardless of their physical position.
This Z-shape configuration stands as the industry standard for multi-pod industrial backwash filter system deployments. It guarantees that every filter element receives the exact same backwash pressure. While it requires slightly more piping material than a linear setup, the operational stability prevents premature equipment failure and ensures consistent water quality.
Center-fed layouts split the incoming flow from a central point. The water feeds two symmetrical banks of filters simultaneously. This T-shape design effectively cuts the required header length in half for each branch. It balances the pressure naturally by mirroring the flow paths on both sides of the central feed.
Engineers specify this layout for extremely high-flow applications. If you run a massive array in a linear line, the header pipe diameters become prohibitively large and expensive. Splitting the flow allows you to use smaller, more manageable pipe sizes while maintaining optimal fluid velocity and reducing the overall structural load on the skid.
Factory-tested modular manifold skids offer strict quality control. Manufacturers weld and pressure-test these units before shipping. They arrive ready for immediate integration, drastically reducing installation timelines. Modular blocks also maintain precise dimensional tolerances for valve alignments, ensuring stress-free connections.
Custom field-fabricated manifolds provide flexibility for awkward spaces. However, on-site welding introduces variables. Poor weld penetration or slight misalignments can create internal flow restrictions. Field fabrication generally requires more labor hours and carries a higher risk of structural integrity issues under pressure.
Layout Configuration | Hydraulic Balance | Footprint Requirement | Ideal Application |
|---|---|---|---|
Linear (Direct Return) | Poor to Fair | Minimal | Small arrays (2-3 pods), low flow |
Reverse Return (Z-Shape) | Excellent | Moderate | Standard industrial and agricultural arrays |
Center-Fed (T-Shape) | Excellent | Large | High-flow, high-capacity municipal systems |

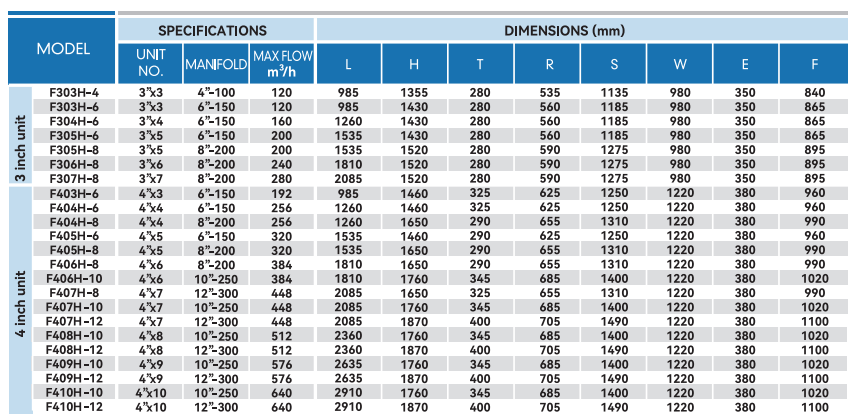

Standard engineering guidelines dictate maximum fluid velocity in headers. You should maintain velocities between 1.5 and 2.5 meters per second. Exceeding these limits introduces severe hydraulic problems. High velocity causes cavitation, generates water hammer during valve shifts, and accelerates physical wear on the pipe walls.
Undersized manifolds throttle system capacity directly. If the pipes are too small, friction losses spike. The pump must work harder to push water through the restriction. This wastes energy and reduces the actual volume of water reaching the downstream process. Proper sizing requires calculating the peak flow during a backwash cycle, not just the average filtration flow.
The manifold layout directly influences the pressure differential trigger for backwash sequences. The system monitors the pressure difference between the inlet and outlet headers. A poorly designed manifold with high inherent head loss will trigger false backwash cycles. The sensors cannot distinguish between dirty filters and bad piping geometry.
Integrating pressure sustaining valves (PSVs) within the manifold guarantees minimum backwash pressure. When a pod enters a cleaning cycle, it demands a sudden surge of water. The PSV slightly restricts the main outlet flow, forcing enough water backward through the cleaning pod to separate the discs and flush the debris.
High points in any manifold layout naturally accumulate trapped air. As air pockets compress and expand, they create violent water hammer during valve shifts. This kinetic energy can easily crack PVC headers or damage valve diaphragms, leading to catastrophic leaks.
Strategic placement of continuous-acting air release valves (ARVs) prevents this damage. You must install ARVs on the highest points of both the inlet and outlet manifolds. These devices expel trapped air under pressure and allow air to enter the manifold during system drain-down, preventing vacuum collapse.
Manifold requirements shift significantly based on the filtration media. A screen filtration system generally requires less backwash pressure to clean its stainless steel mesh. However, screen filters often demand much higher flush volumes to carry the debris away from the screen surface.
This dynamic alters the necessary header and drain manifold sizing. Screen filter manifolds must handle massive, short-duration flow spikes. Disc filters require sustained, high-pressure flow to keep the discs spinning. Therefore, disc filter drain manifolds must be meticulously sized to prevent any backpressure that would stop the rotation.
The physical footprint and weight differences are drastic. A sand media filtration system requires massive, heavy manifolds. The tanks hold thousands of pounds of sand and water. The manifolds must be supported by heavy steel stanchions and poured concrete pads to prevent structural collapse.
Conversely, disc filter manifolds offer extreme modularity. Because the plastic housings and disc spines weigh very little, the manifolds can be skid-mounted. Engineers can even design vertically stacked manifolds to double the filtration capacity within the exact same floor space, providing significant advantages in tight mechanical rooms.
Field constraints dictate agricultural designs. An agricultural water filtration system often sits entirely outdoors. The manifolds require UV-resistant materials like high-density polyethylene (HDPE). HDPE withstands direct sunlight and resists cracking during freezing conditions, making it ideal for exposed environments.
Agricultural layouts must fit within tight pump house enclosures or sit on open-field skids. Surface water irrigation systems frequently suffer from low source pressure. The manifold configurations must be optimized with sweeping bends rather than hard 90-degree elbows to prevent excessive head loss and preserve pump energy for the irrigation emitters.
Industrial applications prioritize redundancy and continuous operation. You cannot shut down a municipal water plant to service one filter pod. The manifold must include heavy-duty isolation valves for every individual housing. This allows technicians to perform maintenance on a single unit while the rest of the system remains online.
Many industrial sites integrate auxiliary clean-water backwash manifolds. When source water pressure is insufficient, or the raw water contains heavy solids, using raw water for backwashing fails. The manifold layout must accommodate an external source of pressurized clean water dedicated solely to flushing the disc stacks.
Drain manifold design is the most common point of failure. If the drain manifold is undersized or contains too many bends, the backwash water cannot escape fast enough. This creates severe backpressure inside the housing, neutralizing the cleaning cycle.
Backpressure prevents the internal piston from compressing the spring. If the spring does not compress, the disc spines will not separate. To mitigate this, follow these specific steps:
Size the drain manifold at least one pipe diameter larger than the feed manifolds.
Utilize long-radius sweeps instead of tight 90-degree elbows.
Ensure the drain line has a continuous downward slope to the discharge point.
Avoid submerging the end of the drain pipe, which creates an air lock.
Poorly designed manifold ends create stagnant water zones, known as dead legs. In these areas, water velocity drops to zero. Algae, bacteria, and biofilm rapidly colonize these stagnant sections, eventually breaking loose and fouling the downstream process.
Mitigate this risk by designing self-draining manifolds. Eliminate unnecessary pipe extensions past the final filter pod. If a dead leg is unavoidable for future expansion, install manual flush valves at the terminal ends and schedule regular blowdowns to clear accumulated sediment.
Automatic backwash cycles subject the manifold to intense physical stress. The sudden shifting of 3-way valves creates hydraulic shockwaves. Over time, this vibration causes fatigue in the pipe joints and plastic welds, leading to leaks.
Proper specification of pipe supports prevents manifold cracking. Use heavy-duty unistrut framing with rubber-lined pipe clamps. Install flexible expansion joints between the main headers and the rigid plant piping to absorb vibration and thermal expansion.
Operational reality dictates that technicians will eventually need to open the housings. Manifolds must be spaced to allow safe access. If the pods are packed too tightly to save space, routine maintenance becomes impossible without dismantling the entire skid.
Design the layout with adequate vertical and horizontal clearance. Technicians need room to swing wrenches, lift the heavy plastic covers, and pull the disc spines completely out of the housings for manual acid washing. Factor in the height of the technician and the lifting angle required.
The manifold acts as the circulatory system of the filtration unit. Even a premium disc filter will fail if mounted on a poorly engineered manifold. Uneven pressure, restricted drains, and excessive fluid velocity will destroy system efficiency and drive up maintenance labor.
When shortlisting your layout, follow a strict decision matrix. Determine your peak flow and backwash requirements first. Select Z-shape or Center-fed layouts to guarantee hydraulic balance. Choose piping materials based on your specific water chemistry and environmental exposure. Finally, adjust the design to fit your physical footprint constraints without compromising maintenance access.
Take these actionable steps before finalizing your system design:
Request a 3D CAD layout from the manufacturer to verify maintenance clearances.
Demand a computational fluid dynamics (CFD) flow analysis to prove pressure equalization across the array.
Verify that the drain manifold is sized larger than the inlet header to prevent backwash failure.
Specify continuous-acting air release valves at all manifold high points.
A: The reverse-return (Z-shape) layout is the best configuration for balancing pressure. It ensures that the first pod supplied is the last to return, equalizing the total pipe friction and pressure drop for every filter in the array.
A: Undersized headers restrict flow and starve the system of necessary pressure. Without adequate pressure, the internal piston cannot decompress the disc stack, preventing the discs from spinning and releasing trapped debris.
A: Yes, but only if you plan ahead. You must size the initial main headers to accommodate future peak flow rates and install blind flanges at the terminal ends for easy connection of additional pods.
A: High-density polyethylene (HDPE) is the standard for agricultural water filtration systems. It provides excellent UV resistance, withstands outdoor temperature fluctuations, and is highly cost-effective for open-field deployments.
A: Prevent water hammer by sizing pipes correctly to keep fluid velocity below 2.5 m/s. Additionally, install continuous-acting air release valves at high points and use valves with controlled, slow actuation speeds.
A: Linear (direct-return) layouts suffer from inherent pressure drops along the pipe run. The furthest pod receives the lowest pressure, leaving it with inadequate hydraulic energy to properly clean its discs during backwash.
A: Backpressure counters the piston-opening spring pressure inside the disc spine. This prevents proper decompression and rotation of the discs, leaving debris trapped within the grooves and causing permanent fouling.
