In the quest for efficient water treatment solutions, disc filter systems have emerged as a leading technology, seamlessly blending advanced engineering with practical applications. Utilizing a unique design of stacked grooved discs, these systems effectively trap suspended solids, ensuring the delivery of clean water across various industries, from agriculture to municipal services. This article delves into the intricate workings, advantages, and applications of disc filter systems, highlighting their role in enhancing water management efficiency and sustainability.
Disc filtration systems use a stack of grooved, ring-shaped discs tightly pressed together on a central shaft. These discs are usually made from durable plastic or metal. Each disc's surface has fine grooves that align when stacked, creating a complex network of filtration channels. This unique design forms a three-dimensional filtration matrix, allowing water to flow through while trapping particles.
The discs are compressed by a spring or mechanical mechanism to maintain tight contact, ensuring the filtration pathways remain effective. The entire disc stack fits inside a housing unit that directs water flow and protects the filter elements. This compact cylindrical design makes disc filters space-efficient and easy to integrate into various water treatment systems.
● Filter Discs: The core filtration element, made of grooved discs stacked on a shaft. Their grooves trap suspended solids and contaminants.
● Central Shaft: Supports and aligns the discs, often hollow to allow filtered water to pass through the center.
● Compression Mechanism: Springs or mechanical devices keep discs tightly pressed to maintain filtration integrity.
● Housing Unit: Encases the disc stack and channels water through the filter.
● Backwash System: Reverses water flow to clean the discs by removing trapped particles.
● Control Valves: Manage water flow during filtration and backwashing cycles.
Water containing suspended solids enters the filter housing, flowing into the disc stack. As water passes through the grooves formed between discs, particles larger than the groove size get trapped on the disc surfaces. The depth and interlocking grooves provide a large surface area, capturing a wide range of particle sizes efficiently.
Over time, trapped particles increase pressure inside the filter, signaling the need for cleaning. The system initiates a backwash cycle, reversing water flow through the discs. This flow loosens and flushes out the accumulated debris without interrupting filtration. After cleaning, the discs are compressed again, and filtration resumes seamlessly.
This continuous cycle of filtration and backwashing allows disc filters to operate efficiently with minimal downtime. Their design supports high dirt-holding capacity while maintaining steady water flow, making them ideal for agricultural, industrial, and municipal water treatment applications.
Proper compression of discs is crucial to maintain filtration efficiency and prevent bypass of contaminants during operation.
During the filtration phase, water containing suspended solids flows into the filter housing and is directed toward the tightly compressed disc stack. As water passes through the narrow grooves formed between the discs, particles larger than the groove size get trapped on the disc surfaces. The interlocking grooves create a three-dimensional matrix, providing a large surface area for capturing a wide range of particle sizes efficiently.
The filtered water then flows through the hollow central shaft and exits the filter housing for use. As solids accumulate on the discs, the pressure inside the filter rises. This pressure differential signals when the filter needs cleaning to maintain optimal performance.
Once the pressure differential reaches a preset threshold, the system initiates the backwashing phase. During backwashing, water flow reverses direction, entering from the outlet side and moving backward through the disc stack. This reversed flow slightly separates the discs, loosening the trapped particles.
High-pressure water jets or a vacuum may assist in dislodging debris from the grooves. The loosened particles are flushed out through the filter’s drain system, restoring the filter’s capacity without stopping the filtration process. After cleaning, the discs are compressed again to reestablish the filtration matrix, and normal operation resumes seamlessly.
One of the key advantages of disc filters is their ability to maintain continuous operation. The backwashing process occurs automatically and quickly, preventing downtime. This ensures a steady flow of clean water, which is critical for applications like irrigation, industrial processes, and municipal water treatment.
Continuous operation also reduces labor costs and the risk of system failures caused by clogged filters. The automated cleaning cycle extends the filter’s lifespan and maintains consistent filtration quality over time.
Regularly monitor pressure differentials in your disc filter system to optimize backwash timing and maintain continuous, efficient filtration without unnecessary water use.
Disc filter systems excel in filtration efficiency due to their unique three-dimensional matrix formed by stacked grooved discs. This design provides a large surface area, enabling the capture of a wide range of particle sizes. The grooves trap suspended solids effectively, resulting in high dirt-holding capacity. This means the system can filter water thoroughly without frequent clogging, ensuring consistent water quality for various applications such as irrigation or industrial processes.
One notable advantage of disc filters is their compact size. The cylindrical housing containing the stacked discs requires minimal space compared to other filtration systems like sand filters. This compactness makes disc filters ideal for installations where space is limited. Their lightweight construction also simplifies integration into existing water treatment setups, reducing the need for extensive structural modifications.
Disc filters feature an automated backwash system that cleans the discs by reversing water flow through the filter. This process loosens and flushes out trapped particles without interrupting filtration. Automation reduces manual labor and maintenance downtime, allowing continuous operation. The quick and efficient cleaning cycle helps maintain optimal filtration performance and extends the system’s lifespan.
Constructed from robust materials such as durable plastics or metals, disc filters withstand harsh operating conditions, including exposure to chemicals and varying water pressures. Their durable build ensures long-term reliability and minimal replacement costs. Additionally, disc filters are versatile, suitable for diverse applications ranging from agricultural irrigation and municipal water treatment to industrial wastewater management and aquaculture.
Regularly schedule automated backwash cycles based on pressure differential readings to maximize filtration efficiency and extend disc filter lifespan.
Disc filtration systems offer versatile solutions across various industries due to their efficient particle removal and continuous operation. Here’s a detailed look at key applications:
Disc filters protect irrigation systems by removing sediments, organic matter, and debris from water sources. They prevent clogging in drip emitters and sprinklers, ensuring uniform water distribution and reducing maintenance costs. Their compact design fits well into irrigation setups on farms, greenhouses, and nurseries. Efficient filtration also helps conserve water by reducing blockages and system downtime.
Industries rely on disc filters to treat process water, cooling tower water, and wastewater streams. They remove suspended solids, protecting equipment and improving water quality. Disc filters handle varying flow rates and contaminants, making them suitable for food processing, power generation, oil and gas, and beverage production. Their automated cleaning reduces labor, while durability withstands harsh industrial conditions.
Municipalities use disc filters to ensure safe, clean water delivery. They serve in tertiary treatment, stormwater management, and water reuse programs. Disc filters remove particulates that could affect public health or damage downstream equipment. Their compact footprint allows integration into existing treatment plants, while continuous operation supports consistent water supply without interruption.
In fish farming, maintaining water quality is vital. Disc filters remove fish waste, uneaten feed, and suspended solids, creating a healthier environment. This filtration reduces disease risk and improves oxygen levels. Their automated backwash feature minimizes manual cleaning, making them ideal for large-scale aquaculture operations where water quality directly impacts productivity.
When selecting disc filters for specific applications, consider factors like particle size, flow rate, and water quality to ensure optimal performance and longevity.
Disc filters and screen filters both serve to remove suspended solids, but their mechanisms and efficiency differ significantly. Screen filters use a mesh or perforated surface to physically block particles. They are simple and cost-effective but often require frequent manual cleaning and can clog quickly when dealing with fine or organic matter.
Disc filters, by contrast, use a stack of grooved discs forming a three-dimensional matrix, providing a larger filtration surface. This design traps a wider range of particle sizes more efficiently and reduces clogging risk. Moreover, disc filters feature automated backwashing, allowing continuous operation without manual intervention. Screen filters usually lack this automation, leading to higher labor and downtime.
Sand filters operate by passing water through a bed of sand, trapping particles within the granular media. They are effective for large volumes and can remove a broad spectrum of contaminants, including fine particles. However, sand filters require a large physical footprint, regular manual backwashing, and periodic media replacement. They also have slower filtration rates compared to disc filters.
Disc filters offer a compact design, making them suitable for space-constrained installations. Their automated backwash system cleans the discs quickly, minimizing downtime. While sand filters handle higher flow rates in some cases, disc filters provide more consistent filtration quality and easier maintenance. Disc filters also avoid issues like channeling or media compaction common in sand filters.
Selecting the ideal filtration system depends on several factors:
● Water Quality Requirements: For very fine particle removal, sand filters or disc filters may be preferred. Screen filters suit coarser debris.
● Space Availability: Disc filters’ compactness benefits tight spaces.
● Maintenance Capacity: Automated disc filters reduce labor; screen and sand filters often need more manual upkeep.
● Flow Rate: Sand filters handle high flow volumes but require more space.
● Cost Considerations: Screen filters have lower upfront costs but higher maintenance; disc filters balance moderate capital with operational savings.
● Application Type: Agricultural irrigation favors disc filters for clog prevention; industrial or municipal systems may require sand filters for broader contaminant removal.
In many cases, combining filtration methods optimizes performance. For example, a screen filter may precede a disc filter to remove large debris, enhancing overall system efficiency.
Evaluate your specific water treatment needs, including particle size, flow rate, and maintenance resources, to choose the filtration method that ensures reliable, cost-effective operation.
While disc filters offer many advantages, they come with some challenges. Mechanical complexity is one. The stacked discs, compression mechanisms, and automated backwash systems involve moving parts prone to wear and failure. This complexity can lead to higher initial installation costs and occasional breakdowns compared to simpler filters.
Disc filters can also face clogging issues, especially when dealing with water containing sticky or fibrous materials. Organic matter or biofilms may accumulate in grooves, reducing filtration efficiency. Though backwashing helps, some stubborn deposits require manual cleaning.
Another drawback is incomplete removal of very fine particles or dissolved contaminants. Disc filters excel at trapping suspended solids but may need supplementary treatment for bacteria, viruses, or chemical pollutants.
Maintaining disc filters involves regular inspections and upkeep to ensure optimal function. Although automated backwashing reduces manual cleaning, periodic checks of the disc stack, compression springs, and valves are necessary. Over time, discs may wear or become damaged, requiring replacement.
Cleaning frequency depends on water quality and usage. Systems handling highly contaminated water may need more frequent backwash cycles and occasional manual cleaning to prevent fouling. Neglecting maintenance can lead to pressure buildup, reduced flow rates, and compromised filtration.
Operators should monitor pressure differentials closely. Sudden spikes may indicate clogging or mechanical issues. Proper lubrication of moving parts and timely replacement of worn components extend system life.
Disc filters generally suit small to medium flow rates but scaling them for very large volumes can be challenging. Larger systems require proportionally more discs and stronger compression mechanisms, increasing complexity and cost.
Initial capital investment for disc filters tends to be higher than simpler filters like screens. However, operational savings from automated cleaning and reduced labor often offset upfront costs over time.
Cost-effectiveness depends on application specifics. For example, in agriculture, the ability to prevent emitter clogging may justify higher investment. In industrial settings, durability and consistent performance can reduce downtime costs.

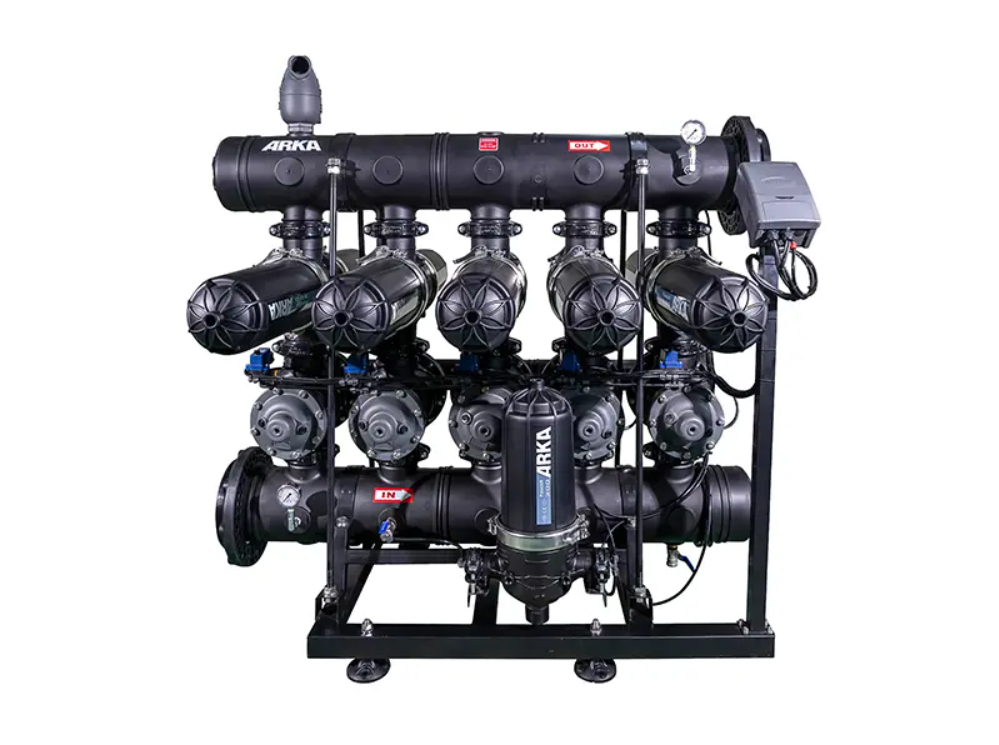

When planning large installations, combining multiple disc filters in parallel or integrating them with other filtration methods can improve scalability. Evaluating total lifecycle costs, including maintenance and energy use, is essential for informed decisions.
Regularly inspect and maintain disc filter components, especially compression mechanisms and discs, to prevent costly downtime and ensure consistent filtration performance.
Disc filters offer efficient filtration, compact design, and automated cleaning. They ensure consistent water quality across applications. The future of disc filtration technology promises enhanced durability and versatility, meeting diverse water treatment needs. About ARKA - 30 Years of Excellence in Water Filtration delivers reliable solutions, maximizing water management efficiency. Their products stand out for robust construction and ease of integration. These features make them invaluable in providing clean water solutions worldwide.
A: A Disc Filter System is a water filtration technology that uses stacked grooved discs to trap suspended solids, ensuring clean water for various applications like agriculture and industrial processes.
A: It works by passing water through a stack of grooved discs, trapping particles larger than the groove size. The system automatically backwashes to clean the discs without stopping filtration.
A: Disc Filter Systems offer efficient filtration, compact design, automated cleaning, and continuous operation, making them ideal for applications with space constraints and high dirt-holding needs.
A: Regular inspections of discs, compression mechanisms, and valves are essential. Automated backwashing reduces manual cleaning, but occasional manual checks and replacements are necessary for optimal performance.
A: While initial costs may be higher, operational savings from automated cleaning and reduced labor often offset these costs, making Disc Filter Systems cost-effective over time.
