F25YD
ARKA

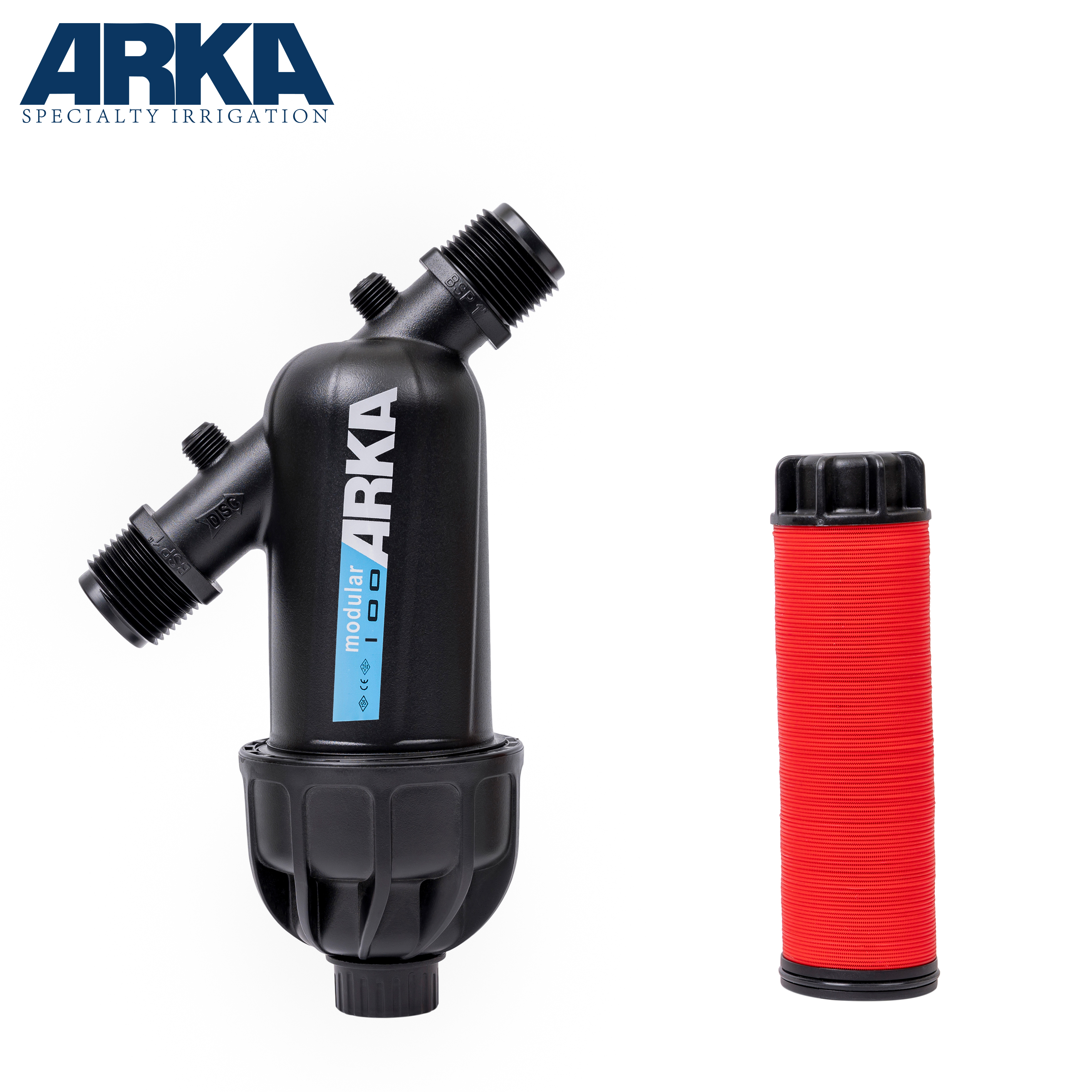

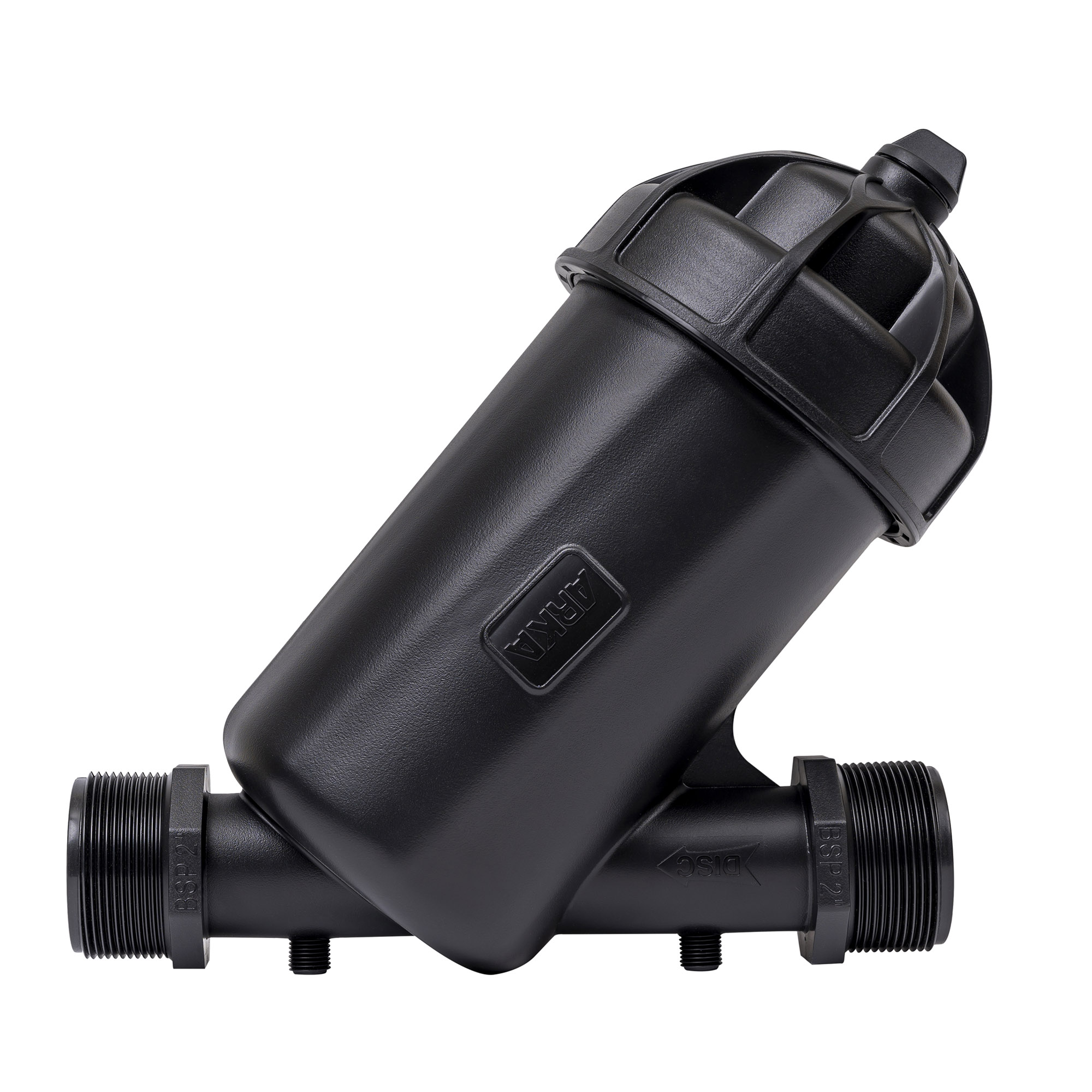

The ARKA 3/4" Y-type disc filter is designed for garden, landscape, greenhouse and drip irrigation systems. Its reusable disc element effectively captures sand, sediment and other suspended particles, helping protect drip lines, emitters, sprinklers and irrigation valves from clogging.
Made of durable engineering plastic, the filter features a compact structure, easy installation and convenient maintenance. It is an economical filtration solution for small-flow irrigation applications.
Durable plastic body with good corrosion resistance
Reusable disc filtration element
Effective removal of sand, sediment and solid particles
Helps prevent clogging of emitters and drip lines
Compact design for installation in limited spaces
Easy disassembly, cleaning and maintenance
Suitable for garden, greenhouse and drip irrigation
Available with ARKA branding or in a neutral version

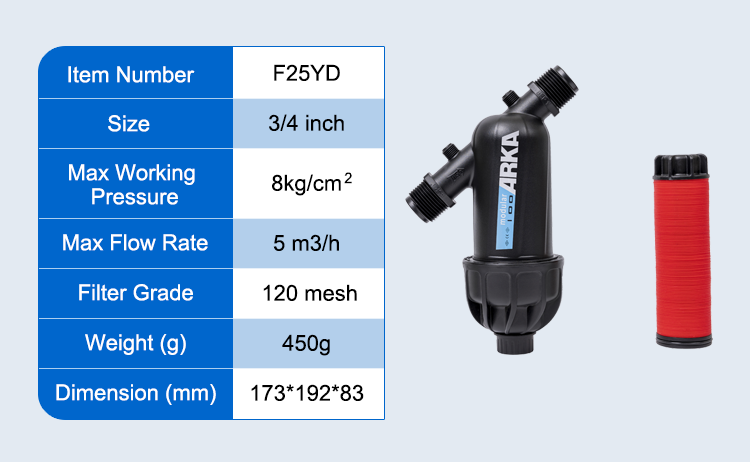

| Item | Specification |
|---|---|
| Product Name | Y-Type Disc Filter |
| Brand | ARKA |
| Model | F25YD |
| Connection Size | 3/4 Inch |
| Connection Type | Threaded Connection |
| Body Material | Plastic |
| Filter Element | Reusable Disc Element |
| Filtration Grade | 120 Mesh |
| Maximum Flow Rate | 5m³/h |
| Maximum Working Pressure | 8bar |
| Applicable Medium | Irrigation Water |
| Color | Black |
| Place of Origin | Fujian, China |
| Branding Options | ARKA or Neutral or OEM |

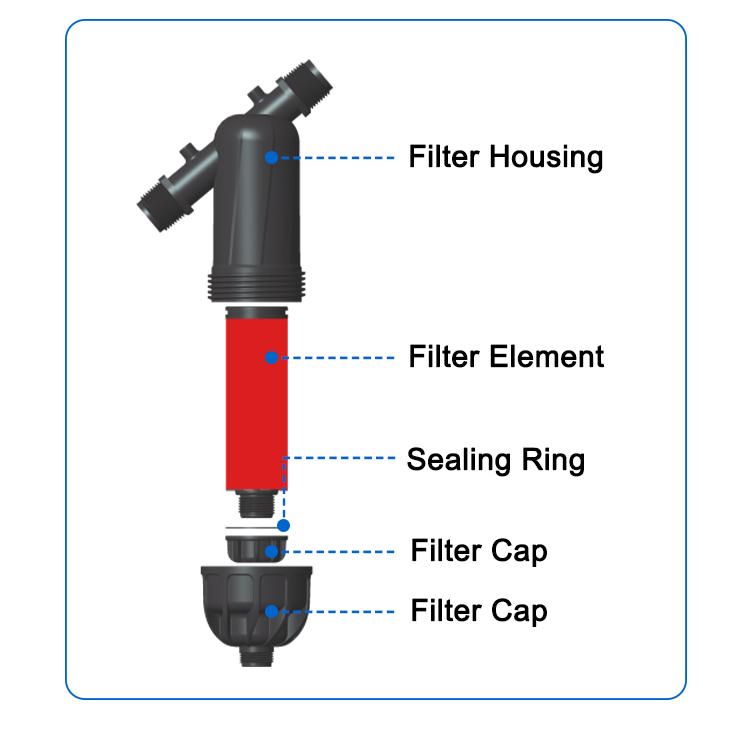

The disc element consists of multiple grooved plastic discs compressed together. When irrigation water passes through the element, solid particles are trapped between the grooves of the discs.
Compared with disposable filter elements, the disc element can be removed, washed and reused, reducing routine maintenance and replacement costs.
This filter is suitable for:
Home garden irrigation
Landscape irrigation
Greenhouse irrigation
Drip irrigation systems
Small agricultural irrigation systems
Sprinkler irrigation systems
Fertilizer and irrigation equipment protection
Designed for installation near the garden water supply, the filter helps reduce sand and sediment entering drip lines, sprinklers and irrigation emitters.
The compact filter can be installed in greenhouse irrigation pipelines to protect drip emitters and provide more reliable water distribution to crops.
Check the water-flow direction before installation.

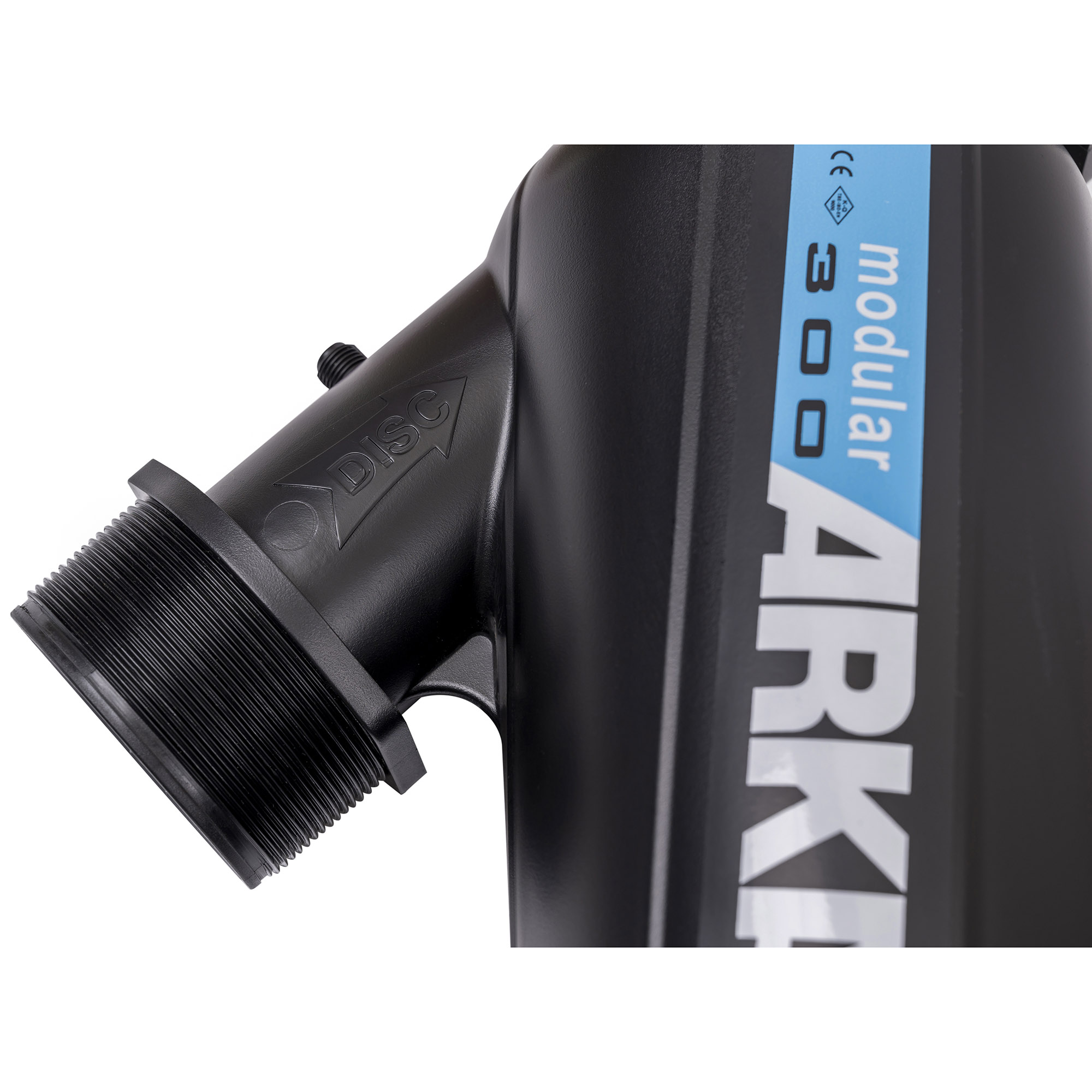

Install the filter according to the flow-direction arrow marked on the body.
Use suitable threaded fittings and sealing tape to prevent leakage.
Avoid applying excessive force when tightening plastic connections.
Leave sufficient space below the filter for element removal and cleaning.
Flush the pipeline before initial operation whenever possible.
Stop the water supply and release the pressure inside the pipeline.
Unscrew the filter cover carefully.
Remove the disc element from the filter body.
Separate or loosen the discs and rinse them thoroughly with clean water.
Check the sealing ring and remove any dirt or damage.
Reinstall the element and tighten the filter cover.
Restore the water supply and check the connections for leakage.
The cleaning frequency depends on the source-water quality and the amount of accumulated dirt.
Professional manufacturer of irrigation filtration equipment
Integrated mold development and injection-molding capabilities
Strict inspection of materials, components and finished products
Complete range of filters, valves and irrigation accessories
Support for OEM and ODM projects
Export experience serving international customers
Technical assistance for product selection and system configuration

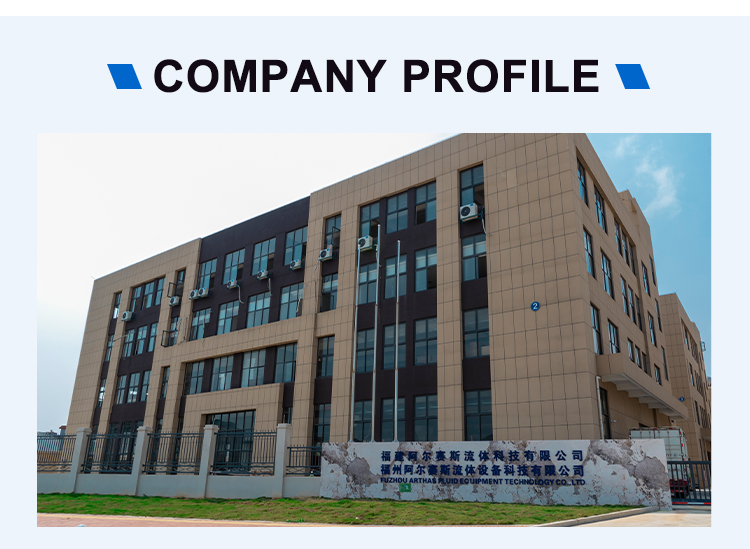

FUZHOU ARTHAS FLUID EQUIPMENT TECHNOLOGY CO., LTD. specializes in the development and manufacture of water-filtration and irrigation equipment.

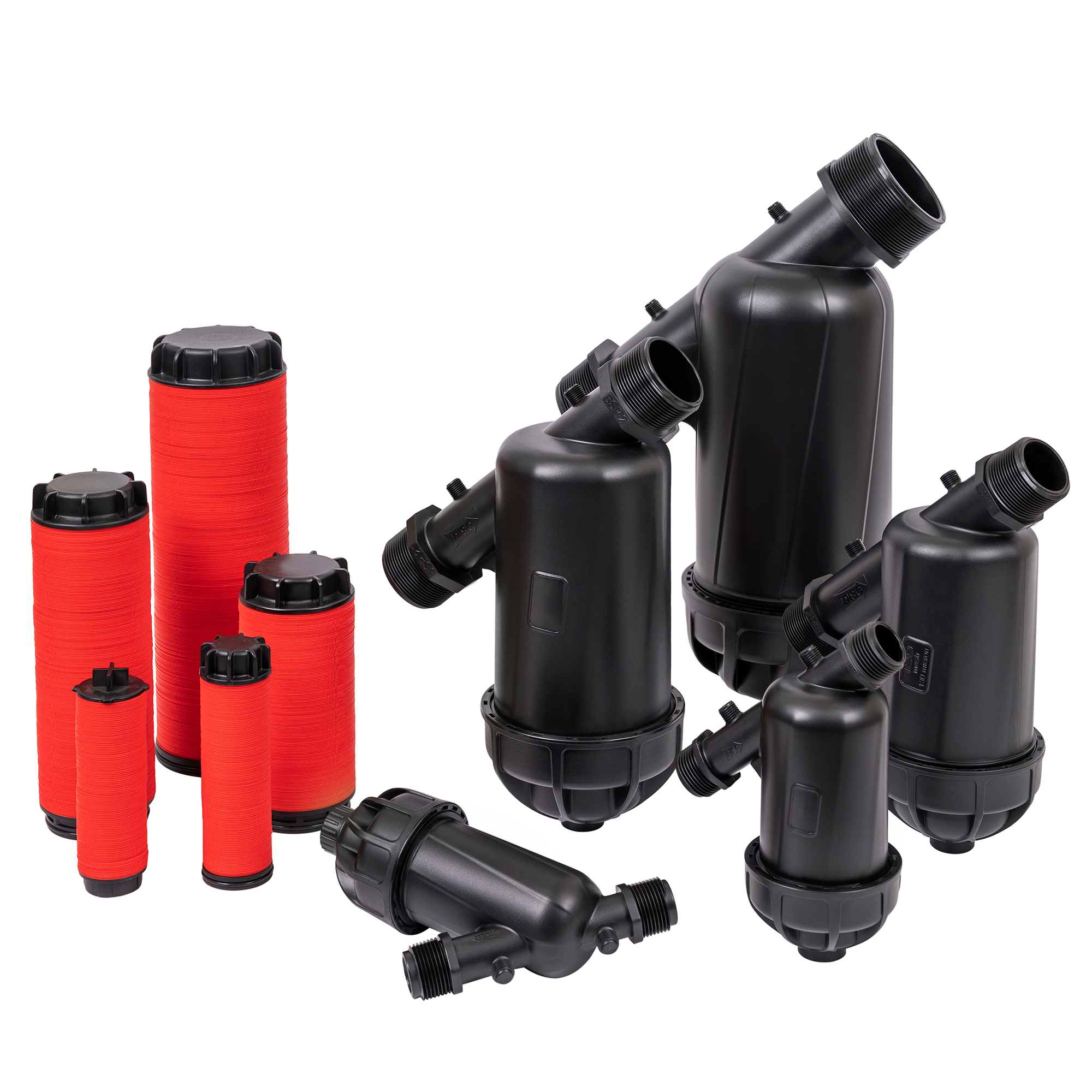

Our main products include manual and automatic disc filters, screen filters, automatic backwash filtration systems, sand media filters, centrifugal filters, hydraulic control valves, solenoid valves and irrigation accessories.
With integrated capabilities covering product development, mold manufacturing, injection molding, assembly and quality inspection, we provide reliable filtration products and customized OEM and ODM services to customers worldwide.
Each filter is inspected before packing. Appropriate export packaging is provided according to the order quantity and shipping method.
Sample orders are available
Standard export packaging
Customized packaging is available for qualified orders
Express, air and sea shipping options
Delivery time depends on the order quantity
Please provide the following information so that we can recommend a suitable filter:
Required connection size
Required filtration grade
System flow rate
Working pressure
Source-water condition
Order quantity
Destination country or delivery address
Contact us for product selection, quotations and technical support.
