F32V
ARKA

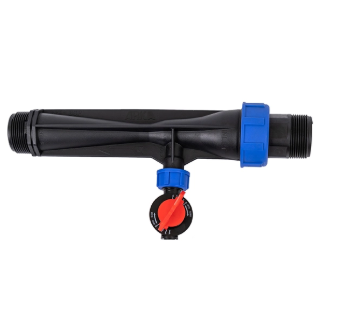

The F32V is a 1-inch plastic venturi fertilizer injector designed for irrigation systems that require nutrient delivery alongside water distribution. This device operates on the venturi principle, creating a pressure differential that draws liquid fertilizer or nutrient solutions directly into the irrigation water stream without requiring external power sources.
The F32V venturi injector functions through a constricted throat design that accelerates water flow and creates a localized low-pressure zone. This pressure reduction creates a suction effect that pulls liquid fertilizer from a supply tank through the injector side inlet into the main water line. The fertilizer solution mixes with the irrigation water as it passes through the expanded section downstream, ensuring uniform distribution throughout the system. This mechanism allows for proportional fertilization that adjusts automatically with changes in water flow rate.
The F32V features a plastic body construction selected for its resistance to corrosion from fertilizers and agricultural chemicals. The material composition withstands continuous exposure to liquid fertilizers, acids, and nutrient solutions commonly used in commercial irrigation operations. The plastic construction also contributes to a lightweight design that simplifies handling and installation compared to metal alternatives.
Each F32V unit includes a built-in control valve with a graduated dial, allowing operators to adjust the fertilizer suction rate according to specific application requirements. The valve enables precise regulation of the nutrient concentration delivered to the irrigation system, supporting different crop growth stages and fertilization schedules. The dial markings provide visual reference for consistent settings across multiple units or repeated applications.
Parameter | Value |
|---|---|
Model | F32V |
Connection Size | 1 inch |
Body Material | Plastic |
Brand | ARKA |
Control Valve | Included with graduated dial |
The F32V venturi injector integrates with drip irrigation and micro-sprinkler systems to deliver liquid nutrients directly to the root zone of crops. This application method supports efficient nutrient uptake by plants while reducing fertilizer waste compared to surface application methods. Commercial farms and agricultural operations use these injectors to implement fertigation programs that combine irrigation and fertilization into a single managed process.
In greenhouse and nursery settings, the F32V venturi injector supports controlled nutrient delivery for potted plants, seedlings, and hydroponic growing systems. The ability to adjust fertilizer concentration makes it suitable for different plant species and growth stages within the same facility. Operators can match nutrient delivery schedules to specific crop requirements, from propagation through maturity.
The F32V venturi injector installs directly into irrigation pipelines using its 1-inch threaded connections. Proper installation requires positioning the injector in a section of the pipeline where sufficient pressure differential exists to drive the venturi suction effect. The unit should be installed after the main filtration system to prevent clogging of the fertilizer inlet, and a check valve is recommended on the suction line to prevent backflow into the fertilizer tank.
Before connecting the suction line to the fertilizer tank, operators should ensure the liquid fertilizer is fully mixed and free of undissolved solids that could obstruct the injector mechanism. The control valve should be set to the desired rate based on the fertilizer manufacturer recommendations and crop nutrient requirements. Regular monitoring of the injection rate during operation helps maintain consistent nutrient delivery across the irrigation cycle.
The F32V venturi injector requires sufficient inlet pressure to create the pressure differential needed for fertilizer suction. Typical operating conditions require a minimum pressure differential between the inlet and outlet sides of the injector. Specific pressure requirements vary based on flow rate and desired fertilization ratio, so operators should consult the product specifications for their particular application.
The F32V is compatible with most liquid fertilizers and nutrient solutions used in agricultural irrigation. It works effectively with water-soluble fertilizers, liquid concentrates, and nutrient blends formulated for fertigation applications. Fertilizers with suspended solids or high viscosity may require pre-filtering or dilution to prevent clogging of the suction line or injector internals.
The fertilization rate is adjusted using the integrated control valve located on the suction side of the injector. Turning the valve dial modifies the flow of fertilizer solution into the main water line. Operators can calibrate the injection rate by measuring the volume of fertilizer drawn over a specific time period and adjusting the valve accordingly. The graduated dial provides a reference point for maintaining consistent settings.
While designed primarily for agricultural irrigation fertigation, the F32V venturi injector can also be used in certain industrial water treatment applications where chemical dosing is required. Its plastic construction offers chemical resistance, and the venturi principle provides a reliable method for proportionally injecting liquids into water streams. Industrial users should verify compatibility with specific chemicals and operating conditions before deployment.
