A check valve is a crucial component in many fluid systems, enabling the controlled flow of liquids and gases while preventing reverse flow. These valves are widely used in industries such as oil and gas, water treatment, chemical processing, and HVAC systems. Without check valves, pipelines and equipment would be vulnerable to backflow, which can cause contamination, pressure loss, or even serious damage.
Understanding how a check valve works, when to use one, and the different types available is essential for engineers, technicians, and homeowners who want to optimize their systems. This article will provide an in-depth look at check valves, including their working principles, applications, installation guidelines, and more.

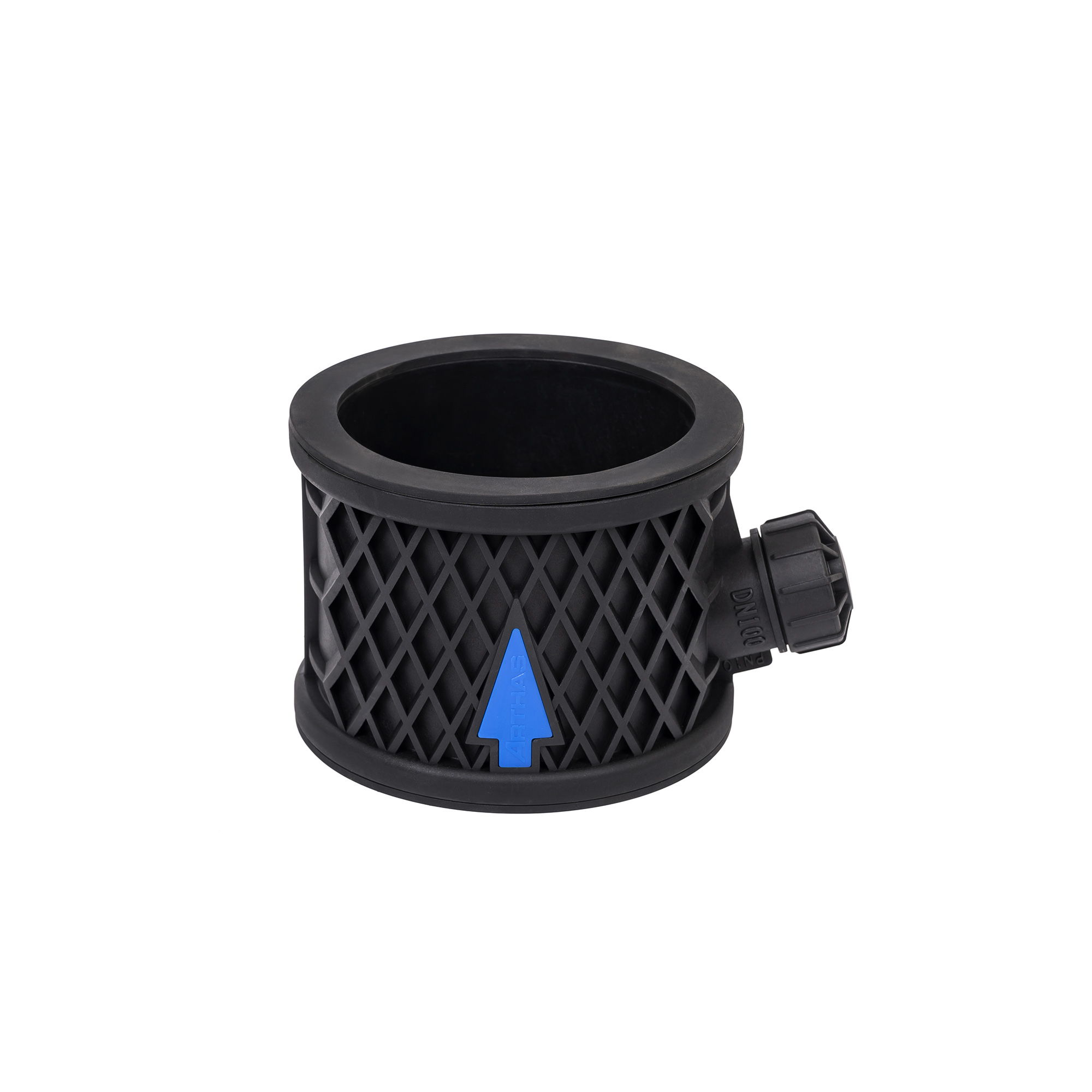

A check valve, also known as a non-return valve (NRV) or one-way valve, is a mechanical device designed to allow fluid to flow in one direction while preventing reverse flow. It operates automatically without the need for manual intervention, making it a critical component in various piping and pumping systems.
There are several types of check valves, each suited for different applications. Below is a comparison of the most common types:
| Type | Description | Common Applications |
|---|---|---|
| Swing Check Valve | A hinged disc swings open when fluid flows in the intended direction and closes when flow reverses. | Water supply systems, wastewater treatment, and fire protection. |
| Ball Check Valve | Uses a ball to block reverse flow; commonly used in viscous applications. | Hydraulic systems, fuel pumps, and chemical processing. |
| Lift Check Valve | A disc moves up and down with the flow pressure; ideal for high-pressure systems. | Steam pipelines, oil refineries, and high-pressure pumps. |
| Diaphragm Check Valve | Uses a flexible diaphragm to control fluid flow, preventing leakage. | Medical devices, food and beverage processing, and chemical industries. |
| Spring-Loaded Check Valve | A spring forces the valve to close when there's no forward flow, ensuring quick shutoff. | HVAC systems, water pumps, and air compressors. |
| Wafer Check Valve | A compact design that fits between flanges; ideal for space-saving installations. | Industrial pipelines, chemical processing, and marine applications. |
These different check valve designs help ensure that the right type is selected based on flow rate, pressure, and fluid properties.
A check valve operates automatically and does not require manual control. The fundamental principle behind a check valve is the pressure difference across the valve. Here's how it works:
Forward Flow: When fluid flows in the intended direction, the pressure on the inlet side overcomes the resistance of the valve mechanism (spring, disc, or ball), allowing the fluid to pass through.
Reverse Flow Prevention: If the fluid tries to flow backward, the valve mechanism closes due to gravity, backpressure, or a spring-loaded mechanism. This prevents reverse flow, safeguarding the system.
Several factors influence the efficiency and effectiveness of a check valve:
Cracking Pressure: The minimum pressure required to open the valve. If the system pressure is below this level, the valve remains closed.
Flow Rate: A higher flow rate may require a larger valve to reduce pressure drop.
Material Compatibility: The valve material should be resistant to the fluid's properties (corrosive, abrasive, etc.).
Installation Orientation: Some check valves need to be installed in specific orientations to function optimally.
Understanding these factors ensures the proper selection and functioning of a check valve in any given application.
The primary purpose of a check valve is to prevent backflow, which can have serious consequences in various systems. Below are some key functions of a check valve:
In applications like water supply systems, a check valve ensures that contaminated water does not flow back into clean water sources, preventing contamination.
Backflow can damage pumps, compressors, and other equipment. Installing a check valve helps extend the lifespan of these components by preventing sudden pressure changes.
A check valve helps maintain pressure in a system by preventing fluid from flowing backward, ensuring consistent operation.
Water hammer occurs when a sudden stop in fluid flow creates shock waves, which can damage pipes and fittings. Certain check valves, such as spring-loaded or soft-seated designs, help mitigate this issue.
In industries dealing with toxic, flammable, or high-pressure fluids, a check valve prevents dangerous leaks and backflow that could lead to accidents.
A check valve is essential in various scenarios. Below are some common applications where installing a check valve is necessary:
A check valve prevents contaminated water from flowing back into clean water lines, ensuring water safety in residential and industrial plumbing.
In pump discharge lines, a check valve prevents fluid from returning to the pump, reducing pump wear and preventing damage.
Heating, ventilation, and air conditioning (HVAC) systems use check valves to control refrigerant flow and prevent backflow that can reduce efficiency.
Oil refineries and gas distribution networks use check valves to prevent reverse flow that could lead to pressure imbalances or hazardous conditions.
Fire sprinkler systems must maintain water pressure at all times. A check valve ensures that water does not drain back, keeping the system ready for emergencies.
Chemical plants handle aggressive fluids, and a check valve prevents cross-contamination and ensures process stability.
Medical equipment like oxygen supply systems and IV drip mechanisms use check valves to control fluid direction and prevent contamination.
A check valve is a fundamental yet crucial component in fluid systems, ensuring efficient flow control and preventing damage caused by backflow. Whether it's for protecting equipment, maintaining system pressure, or ensuring safety, selecting the right check valve is essential for optimal performance.
With various types, including swing check valves, ball check valves, lift check valves, diaphragm check valves, and more, understanding the specific requirements of your application will help in choosing the best check valve. Proper installation and maintenance further enhance their effectiveness, ensuring long-term reliability.
1. What is the difference between a check valve and a backflow preventer?
A check valve allows fluid to flow in one direction and prevents reverse flow, while a backflow preventer is a more advanced device that includes multiple check valves to provide extra protection against contamination in potable water systems.
2. How do I know if my check valve is failing?
Signs of a failing check valve include unusual noises (such as chattering or hammering), reduced flow rate, leakage, or complete failure to stop backflow.
3. Can a check valve be installed horizontally?
Yes, but the installation orientation depends on the check valve type. Some check valves work best in vertical positions, while others can function well in horizontal pipelines. Always check manufacturer guidelines.
4. What is the lifespan of a check valve?
The lifespan of a check valve depends on factors such as material, operating conditions, and maintenance. On average, a well-maintained check valve can last 5-10 years or more.
5. Do check valves reduce water pressure?
Yes, check valves create a minor pressure drop due to the resistance they introduce. However, selecting the right type and size can minimize this effect.
